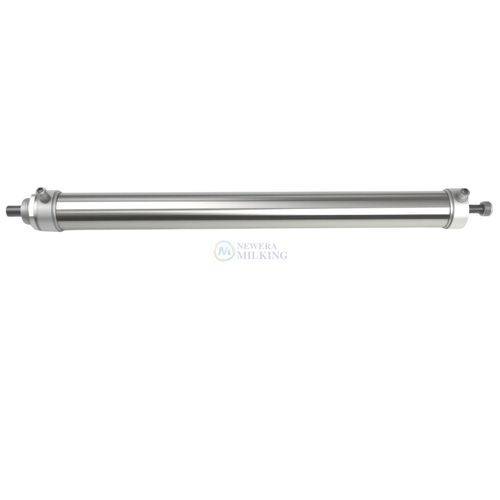

Cylinder 5120429

Product overview
The STRK Ser 1 Ret cylinder with 16 in stroke is supplied as a maintenance kit containing the main mechanical parts and sealing elements required for replacement or repair.

Identifiers

• NEM No. 5120429
• General No. 50421

Components

• 16-inch stroke cylinder nose cap
• Cylinder rod for 16" stroke
• O-RING, 5/16" ID, 1/2" OD, VITON
• SNAP RING 1/2" HEAVY DUTY SST
• Tube 10-32 x 1/8", brass
• HHCS 10-32 x 1/4" SST
• Tube fitting 1/8" NPT x 1/8", brass
• U-CUP 1 x 1-3/8 60D SERIES 1
• O-RING, 1-1/8" ID, 1-3/8" OD, BUNAN
• U-CUP, 1/2" ID, 3/4" OD, 1/8" C/S

Technical specifications

• NEM Number: 5120429
• General Number: 50421
• Model / Series: STRK Ser 1 Ret
• Stroke / Size indicator: 16 in (nominal stroke)
• Kit contents: nose cap; cylinder rod (16" stroke); O-rings (VITON, BUNAN); snap ring (heavy duty SST); brass tubing and fittings; HHCS 10-32x1/4 SST; U-cup seals (various sizes)
