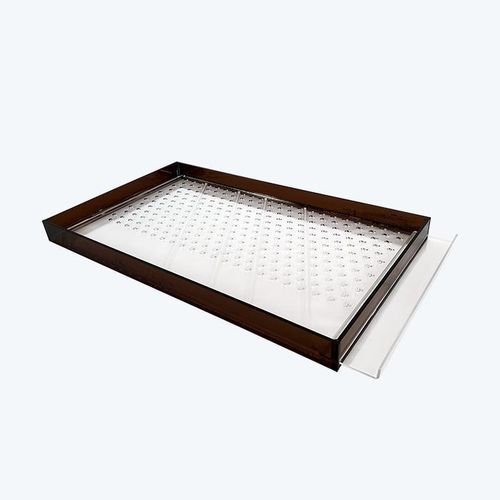

Manual tray seeder

Overview
Manual seed dropper for paperpot trays using two-layer perforated plates. Select plate type according to tray cell count and seed size to ensure correct alignment and dropping.

How it works
The tool consists of two stacked plates with matching hole positions aligned to paperpot cells. Place seeds into all holes of the upper plate, then slide the upper plate to align with the lower plate so seeds pass through and fall into each cell of the tray.

Common cell numbers

• CP303 / LP303-10 / LP303-15: 264 cells
• LP353-30: 190 cells

Detail information
Dimensions: 415×730×80 mm
Weight: 2.3 kg

Technical specifications

• Product name: SEEDER
• Function: seed dropper for paperpot trays using two-layer plates
• Operation: load seeds on upper plate holes, slide to align with lower plate holes so seeds drop into each cell
• Compatible cell counts: CP303 / LP303-10 / LP303-15 = 264 cells; LP353-30 = 190 cells
• Dimensions: 415×730×80 mm
• Weight: 2.3 kg
