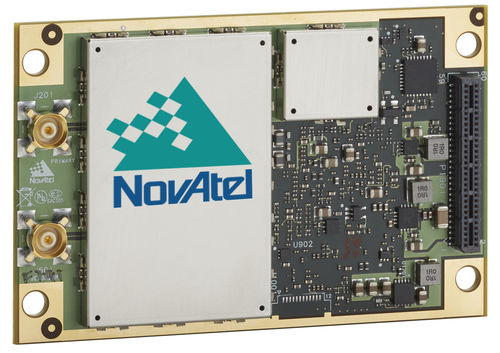

GNSS antenna OEM7720™ Dual-Antenna, Multi-Frequency GNSS Receiver

for farm machinery

The OEM7720 is a multi-frequency, dual-antenna receiver that delivers robust heading and positioning along with advanced interference mitigation features. The OEM7720 uses a 555 channel architecture and is can track all current and upcoming constellations. It's scalable to offer sub-metre to centimetre level positioning and is field upgradable to all OEM7® family software options, including NovAtel CORRECT™ with RTK, ALIGN®, GLIDE® and SPAN®. Features 555 channel all-constellation multi-frequency heading and positioning solution Multi-channel L-Band supports TerraStar correction services Serial, USB, CAN and Ethernet connectivity with web interface Advanced interference visualization and mitigation features Firmware solutions including RTK, GLIDE™, STEADYLINE®, SPAN® and ALIGN® Simple to integrate, small form factor with 20 g vibration performance rating SPAN INS functionality Attributes System TypeBoard General InfoLength (mm)71 Width/Diameter (mm)46 Height (mm)8 Weight (g)31 Typical Power Consumption (W)1.8 Signal Tracking Primary RF GPSL1 C/A, L1C, L2C, L2P, L5 GLONASSL1, L2, L3, L5 BeiDouB1l, B1C, B2a, B2l GalileoE1, E5 AltBOC, E5a, E5b IRNSSL5 SBASL1, L5 QZSSL1 C/A, L1C, L2C, L5 Secondary RF GPSL1 C/A, L1C, L2C, L2P GLONASSL1 C/A, L2C, L2P BeiDouB1l, B1C, B2a, B2l GalileoE1, E5b QZSSL1 C/A, L1C, L2C L-Bandup to 5 channels Number of Com PortsLVCMOS5 CAN Bus2 USB Device 1 USB Host1 Ethernet1 PerformanceAccuracy (RMS) Single Point L11.5 m Single Point L1/L21.2 m SBAS60 cm DGPS (code)40 cm TerraStar-C PRO2.5 cm TerraStar-L40 cm RTK1 cm + 1 ppm
