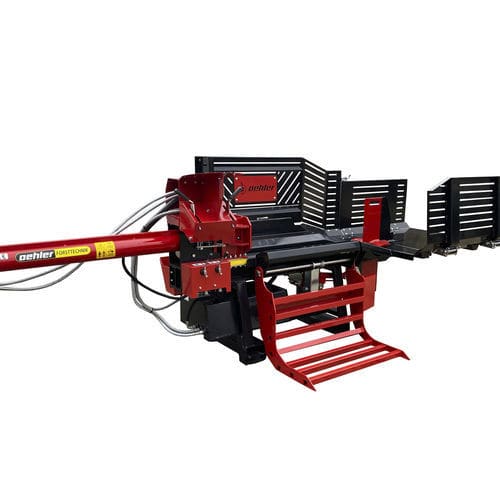

Hydraulic wood splitter OL 2200

horizontalPTO-driven

OL 2200 - Horizontal wood splitter Required oil capacity: 50 l Design: horizontal Drive type: PTO shaft, attached oil pump Power: 45 hp Splitting pressure: 22 t Splitting length: 1,250 mm Dimensions L x W x H: 4,200 x 1,450 x 1,400 mm Transport width: 1.56 m Transport height: 1.30 m Pressure: 230 bar Weight kg: 670 • Horizontal design • Complies with the latest DIN EN 609-1 standard • Splitting pressure max. 22 t • Splitting length up to 1,250 mm • Hydraulic wood pick-up • Hydraulically height-adjustable blade • Storage table • Retractable cylinder without tools • Smooth-running two-hand safety switch • Quick-split knife • Two splitting speeds • Stepless splitting length adjustment • Prevention of heat build-up in the oil thanks to large hose diameter • Ergonomic operating height • Hydraulically adjustable splitting wedge
