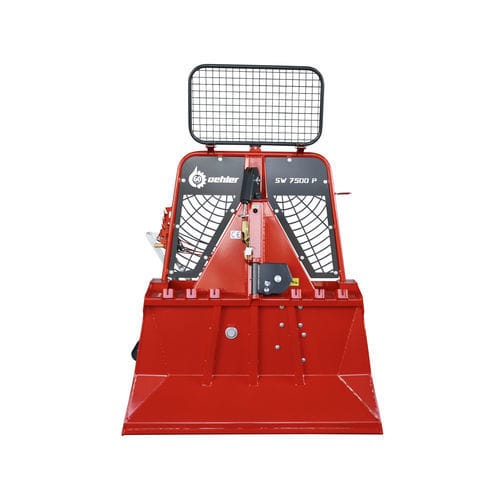

Mechanical forestry winch OL SW 7500P G

3-pointtractor mounted

OL SW 7500 P G - Mechanical forestry winch Max. pulling force: 7.5 t Standard rope length: 80 m /Ø 12 mm compacted 6 F-V Max. rope capacity: 100 m / 12 mm Protective grille: foldable Tractor power requirement: 40-66 kW / 55-90 hp LxWxH with protective grille: 660 x 1,600 x 2,300 mm Upper / lower deflection roller: Standard / Standard Trailer coupling: Accessory Average rope speed: 0.6 per sec. State-of-the-art manufacturing technology CNC-controlled laser cutting machines, CNC turning and milling stations, and welding robots ensure durability and the highest quality Low, compact design Easy, quick attachment to 3-point hitch ensures optimal performance in difficult terrain, even with smaller tractors The large rope inlet roller (specially mounted) is optimally positioned at the top, ensuring perfect rope take-up on the rope drum under tension. This enables effective, ground-friendly backing of the wood. Robust, large bulldozer blade (back yoke) with chain traps ensures plenty of space for heavy wood. Rope take-up drum located on the tractor side Simple, robust coupling (dead man's switch principle) enables optimum traction and safe working All functions can also be operated from the tractor
