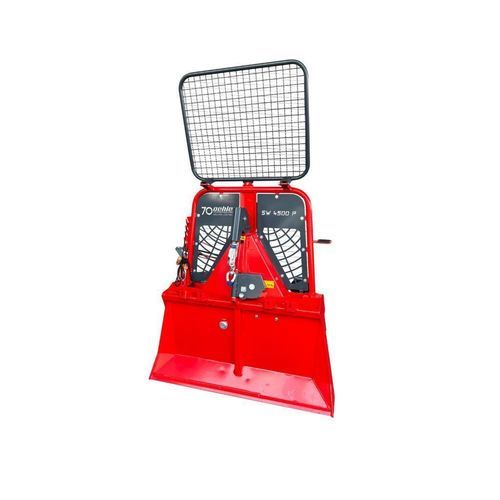

Hydraulic forestry winch OL SW 4500P EH

3-pointtractor mounted

OL SW 4500 P EH - Electrohydraulic forestry winch Max. pulling force: 4.5 t Average rope speed: 0.9 per sec. Standard rope length: 70 m / Ø 10 mm compacted 6 F-V Max. rope capacity: 85 / 11 Protective grille: foldable Tractor power requirement: 22-40 kW / 30-54 hp LxWxH with protective grille: 490 x 1,400 x 2,100 mm Upper / lower deflection roller: Standard / Standard Trailer coupling: Accessory Average rope speed: 0.9 per sec. - State-of-the-art manufacturing technology: CNC-controlled laser cutting machines, CNC turning and milling stations, and welding robots ensure durability and the highest quality. - Low, compact design. - Easy, quick attachment to 3-point hitch ensures optimal performance in difficult terrain, even with smaller tractors. - Large rope inlet roller (specially mounted) optimally positioned at the top ensures perfect rope take-up on the rope drum under tension. This enables effective, ground-friendly hauling of timber. - Robust, large bulldozer blade (back yoke) with chain traps ensures plenty of space for heavy timber. - Rope take-up drum located on the tractor side. - Simple, robust coupling (dead man's switch principle) enables optimum traction and safe working. - All functions can also be operated from the tractor.
