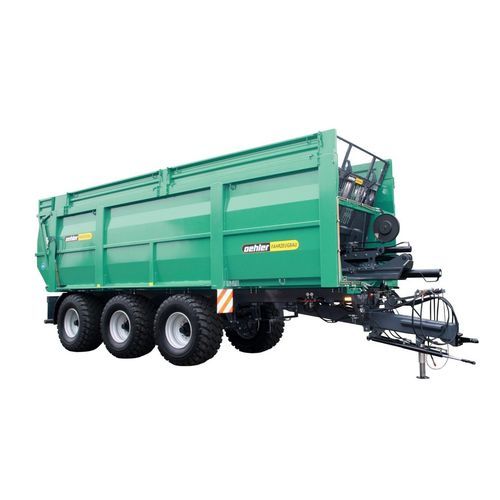

Push-off trailer OL ASW 340

3-axleagricultural33 ton

OL ASW 340 - Tridemachs push-off trailer Permissible total weight: 33.0 t (with ball head 34.0 t) Unladen weight approx.: 11,500 kg Box dimensions (internal): 9,000 x 2,300 x 2,000 mm Standard tires: 560/60-22.5 167 A8 (550/60-22.5/16PR) Unladen weight approx.: 11,500 kg Overall length: 10,750 mm Overall width: 2,550 mm Platform height approx.: 1,500 mm Track width approx.: 2,150 mm Max. axle load capacity: 12,000 kg Loading volume without extension: 40 m³ Load volume with extension: 50 m³ - Torsion-resistant chassis made of sturdy rectangular tubular frame, spring-loaded drawbar - ALB as standard - ADR axle: suitable for 25/40/60 km/h, 420 x 180 - Hydraulic support leg - 2K paint finish - 1st + 3rd steering axle with forced steering - Large loading volume - No stability problems on uneven terrain thanks to sliding technology - Easy unloading in low halls - Transport goods can be compacted or dosed - Loading volume without extension 40 m³ - Loading volume with extension 50 m³
