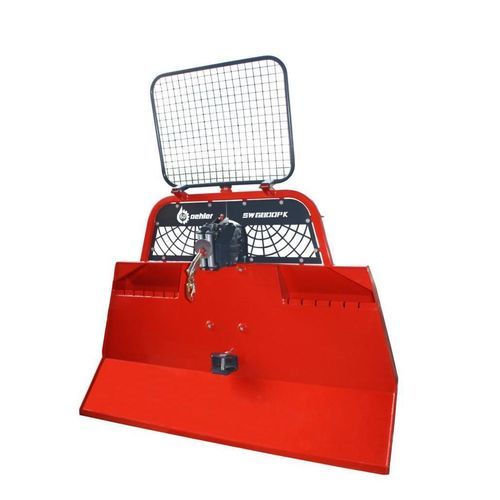

Hydraulic forestry winch OL SW 6800P K - 2100

constant pull3-pointtractor mounted

OL SW 6800P K - Electrohydraulic forestry winch Operation: Electrohydraulic Max. pulling force: 6.8 t Standard rope length: 100 m / Ø 12 mm compacted 6 F-V Max. rope capacity: 130 m / 12 mm Protective grille: Foldable Tractor power requirement: 74 kW / 100 hp Pull mouth: Accessory Average rope speed: 0.56 per sec. WxH with protective grille: 1,900 x 2,300 mm - Hydraulic rope feed as standard - Rope entry brake as standard - Adjustable speed of hydraulic rope feed and brake cylinder - Maximum pulling force from the lowest to the highest rope position - Less wear thanks to spiral bevel gear and worm gear - Maximum comfort and smooth operation of the rope winch - The risk of rope breakage is minimized by even rope forces - Highest quality clutch discs and bearings - Rope feed with 360° rotation, resulting in a long service life for the wire rope – European patent - “Profi 3 in 1” function ensures that the wire rope is correctly tensioned between the rope winch and the load – European patent - 0% loss of pulling force with constant rope winch
