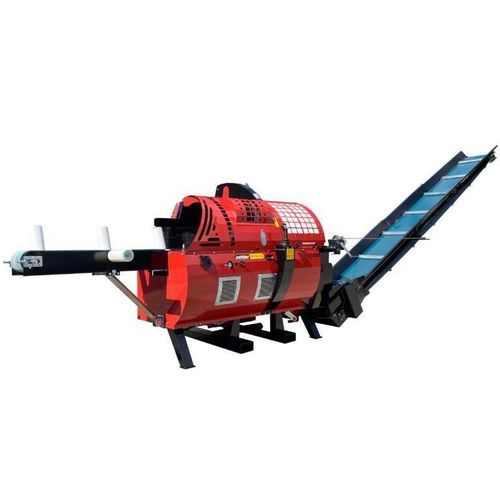

Firewood processor with chainsaw OL 4800 HZ

PTO-driven

OL 4800 HZ - Automatic sawing/splitting machine Drive: PTO shaft (speed: min. 400 to max. 430 rpm) Max. splitting force: 22 t Chain lubrication: Automatic chain lubrication, oil capacity 5.0 liters Net weight approx.: 1,600 kg Operation: Joystick Splitting length: up to 600 mm, infinitely variable Cutting device: 450 mm Feed conveyor: 2,200 mm with forward and reverse Loading conveyor: 5,000 mm (3-fold telescopic) Splitting cross: 4-fold series Speed: 1 splitting speed Power requirement: 80 hp Construction made of robust high-performance steel - Joystick control, 8 functions - Hydraulic length limiter - Hydraulic hold-down device - Oil cooler - Splitting knife / cross 4-, 6-, 8-, 12-fold - Saw chain switch via clutch runs exclusively during sawing - Construction made of robust high-performance steel with hydraulic splitting knife adjustment and hydraulic log holder - 2 ejection flaps - Telescopic conveyor belt with automatic hydraulic belt tensioning and single-acting cylinder, drive with double bearing - Telescopic conveyor belt hydraulically swivels to the right and left
