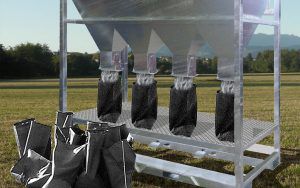

Fastbag is a soil filling machine designed to fill jute bags or big heavy bags of gravel material such as stones, sand or other materials.
Its simple use makes it a versatile machine, suitable to operate in the most adverse environments, thanks to a light and easily transportable structure.
Technical features
Machine structure
Completely galvanized machine, consisting of:
1) Tubular supporting frame.
2) Main tank for material collection.
3) N. 4 material discharge hoppers, equipped with gate valves (4), are opened / closed by means of a pedal board (5), regulating the quantity of product to be dispensed.
Thanks to a ladder (6) with anti-fall semicircular rear railing, we can inspect the upper tank in complete safety, respecting the access limit (7).
The tank is secured, thanks to welded anti-intrusion bars (8).
The machine is equipped with accesses (9) for the fork of the forklift, to allow easy and safe transport.
Dimensions mm: 2400 (L) x 1100 (P) x 2200 (H)
Unladen mass: 500 kg
The machine works at full capacity with
No. 4 operators.
The operations of filling the bags
they take place in a simple and effective way, guaranteeing large daily productions.
