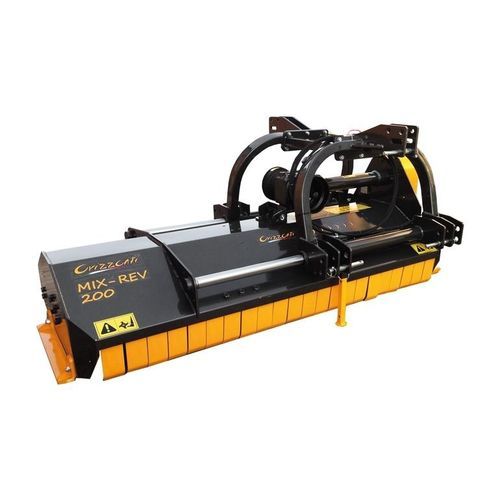

Mounted mulcher MIX/REV series
flailknifevineyard

mounted mulcher
mounted mulcher
mounted mulcher
mounted mulcher
mounted mulcher
mounted mulcher
mounted mulcher
Add to favorites
Compare this product


Characteristics

Type
mounted
Technology
flail, knife
Applications
vineyard
Number of hammers
20 hammers, 16 hammers, 24 hammers
Number of knives
48 knives, 40 knives, 32 knives
Other characteristic
PTO-driven, hydraulic, for tractors
Cutting width

Min.: 80 cm
(31.5 in)

Max.: 192 cm
(75.59 in)

Rotational speed

540 rpm, 1,000 rpm
(3,393 rad.min-1, 6,283 rad.min-1)

Tractor power

Min.: 30 ch
(30 hp)

Max.: 70 ch
(70 hp)

Weight

525 kg, 560 kg, 630 kg, 670 kg, 775 kg
(1,157.43 lb, 1,234.59 lb, 1,388.91 lb, 1,477.1 lb, 1,708.58 lb)

Description

The MIX REV reversible cutter, suitable for work on grass, shoots of vineyards, orchards, and cornstalks, ideal for tractors of 40-80 hp. MIX REV, the name leaves no room for doubt, the best you could wish for from a cutter with dual work mode, front and/or rear thanks to the double robust castle with three points, double reinforced sheeting to compensate for large impacts, liquid painted ideal to increase the duration of the cutter, adjustable rear roller in different positions to ensure an ideal working height, and last but certainly not least, a consolidated transmission, using a gearbox with double PTO with free inner wheel and with toothed belts with 3-5 elements depending on the length of the machine. The work dimensions compatible with the MIX REV mod. are 145/160/180/200/225 cm. As on all of the cutters of the Orizzonti company, in the castles for the three-point tractor attachment there are a number of slots to allow the machine to better adapt on the ground during work and to avoid abrupt slopes; everything available with mechanical movement and hydraulic upon request. Standard equipment -Straight side -Body with double internal plate -Double basket for three-point attachment -Hammers or Y knives (upon request) -Three-point attachment 1° and 2° category -Screw-on lateral movement device on chrome-plated rods -Gear box with internal free wheel -Adjustable rear leveller roller Ø 160 -No. 2 rows of counter knives -Reinforced rock fall protection straps -EC compliant accident prevention mechanisms
