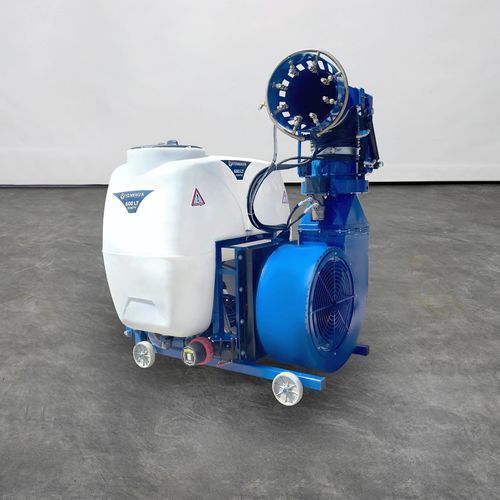

Robotic sprayer RH-600LTfor viticulturefor arboriculturehydraulic
Add to favorites
Compare this product
Characteristics
- Mobility
- robotic
- Application
- for viticulture, for arboriculture
- Technology
- hydraulic
- Capacity
600 l
(158.5 gal)- Working width
Max.: 20 m
(65'07" )Min.: 15 m
(49'02" )- Pump capacity
105 l/min
(27.7 us gal/min)- Pump pressure
50 bar
(725.2 psi)
Description
Product Details
Our Robotic Hydraulic 600LT Sprayers are machines with high work efficiency. The water filter can be easily cleaned and thanks to the hydraulic mixing system, it can mix the pesticide homogeneously with water.
General Description
Our spraying machines have high work efficiency. The water filter can be easily cleaned and the hydraulic mixing system can mix the pesticide homogeneously with water. Thanks to the pressure regulator on it, the pressure level of the drug can be adjusted at the desired flow rate (LT/DK). The nozzle of Turbo Atomizers can rotate around its own axis to adjust short and long distances. It moves the turbo group with a three-channel belt pulley system connected to the pump output shaft.
Features
Technical Specifications
Tank Capacity: 600 Lt
Number Of Tips: 11
Pump Flow Rate: 105 Lt
Working Cycle: 540
Pump Pressure: 50 Bar
Tip Type: Brass Nozzle with Stopper
Work Width: 15-20 m
Dimensions (Width x Length x Height): 170 x 126 x 225 cm
Weight: 590 kg
Warranty: 2 Years
Pump Type: GT 80
Characteristics / Technical Specifications
Our Robotic Hydraulic 600LT Sprayers are machines with high work efficiency. The water filter can be easily cleaned and thanks to the hydraulic mixing system, it can mix the pesticide homogeneously with water.
General Description
Our spraying machines have high work efficiency. The water filter can be easily cleaned and the hydraulic mixing system can mix the pesticide homogeneously with water. Thanks to the pressure regulator on it, the pressure level of the drug can be adjusted at the desired flow rate (LT/DK). The nozzle of Turbo Atomizers can rotate around its own axis to adjust short and long distances. It moves the turbo group with a three-channel belt pulley system connected to the pump output shaft.
Features
- Spraying arm height adjustment works with hydraulic system
- Tractor driven working principle
- Provides high level efficiency with 15-20 meters spray power
- 600 Lt tank capacity
Technical Specifications
Tank Capacity: 600 Lt
Number Of Tips: 11
Pump Flow Rate: 105 Lt
Working Cycle: 540
Pump Pressure: 50 Bar
Tip Type: Brass Nozzle with Stopper
Work Width: 15-20 m
Dimensions (Width x Length x Height): 170 x 126 x 225 cm
Weight: 590 kg
Warranty: 2 Years
Pump Type: GT 80
Characteristics / Technical Specifications
- Tank Capacity: 600 Lt
- Number Of Tips: 11
- Pump Flow Rate: 105 Lt
- Working Cycle: 540
- Pump Pressure: 50 Bar
- Tip Type: Brass Nozzle with Stopper
- Work Width: 15-20 m
- Dimensions: 170 x 126 x 225 cm
- Weight: 590 kg
- Warranty: 2 Years
- Pump Type: GT 80
