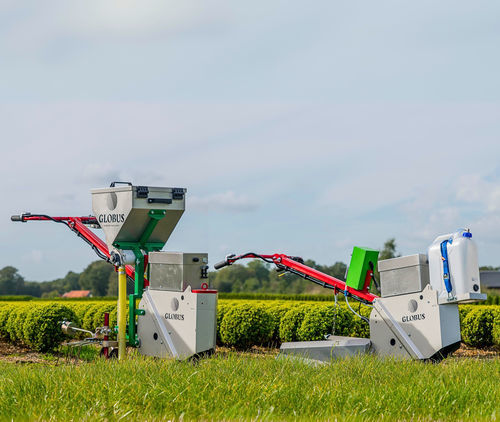

Cultivating tool carrier arm SPK03

weeder

Short description
The modular, electrically powered Globus SPK03 implement carrier is designed for sustainable crop care with minimal ground pressure and broad applicability. The carrier accepts interchangeable tools and can be configured for up to 10 functions, including mechanical weed control, LvS low-volume spreading and chemical or biological crop care. Quick tool changes enable fast conversion between tasks on-site.

Applications

• Mechanical weed control (hoes, vibrating tine cultivator, finger weeders)
• Chemical or biological crop care (spraying, chemistry set)
• LvS low-volume spreading (various spreading heads)
• Row fertilization (row injector with 2 outlets)
• Ground leveling / filling driving marks after planting
• Irrigation hose laying (10 cm under ground)

Features & highlights

• Modular implement carrier — configurable with interchangeable tools (up to 10 functions)
• Electric drive: brushless 550 W motor, 48 V
• Optional interchangeable lithium battery: 48 V 15 Ah
• Minimal ground pressure for sensitive crops
• Manual control with self-propelled drive
• Quick conversion between implements
• Max working width: 120 cm (track width not adjustable)
• Front wheel size: 400x8

Options

• 3-hoe mounting frame (spring-loaded torsion or finger weeders available)
• Row harrow: 13 teeth or 2× 7-teeth row harrows
• Roller hoe for gravel and stones
• Sand scraper to fill driving marks after planting
• Row injector with 2 outlets (row fertilizer)
• Chemistry set with 2.5 L or 10 L tank
• Additional LvS spreading heads and mounting for extra head and pump
• Various spray hoods in different sizes (open and closed)
• Irrigation hose layer (10 cm below ground)
• Support wheel Ø240

Details (table)
Machine type: Globus SPK03 Multi-E-Barrow
Execution: Modular, up to 10 functions, interchangeable battery option
Applications: Mechanical and chemical weed control, LvS, row fertilization, spraying, ground leveling
Drive: Electric vehicle (EV), 48V 550W brushless motor
Track/row spacing: not adjustable
Max working width: 120 cm
Front tyre: 400x8

Characteristics / technical specifications

• Brand: Globus
• Model: SPK03 Multi-E-Barrow
• Drive type: Self-propelled, electric
• Motor: Brushless 550 W, 48 V
• Battery: Interchangeable lithium battery option 48 V 15 Ah (optional)
• Working width: up to 120 cm
• Track/row spacing: not adjustable
• Operation: Manual control
• Condition: New
• Modularity: Up to 10 interchangeable functions/applications
