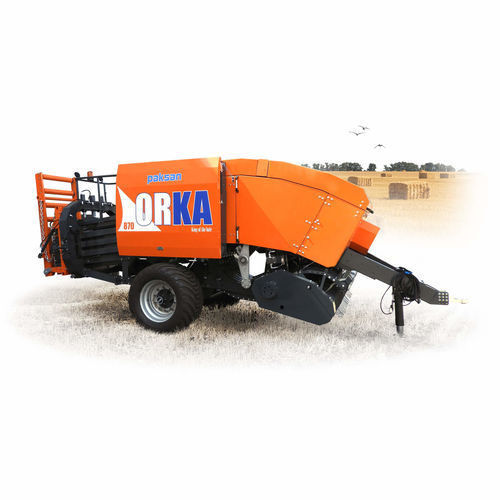

Square baler ORKA 870large
Add to favorites
Compare this product
Characteristics
- Bale type
- square
- Other characteristic
- large
- Bale width
80 cm
(31.5 in)- Bale height
70 cm
(27.6 in)- Engine power
100 ch
(100 hp)- PTO speed
1,000 rpm
(6,283.2 rad.min-1)
Description
Product overview
The ORKA 870 is a rectangular baler for hay and straw requiring 90-100 HP. It produces bales with an 80×70 cm cross section: hay bales of 250-300 kg and straw bales of 220-250 kg. The machine uses a rotor system for consistent bale formation and includes a PLC control panel. Integrated moisture meter and weighing system provide continuous monitoring of bale moisture and weight.
Features
Technical specifications
The ORKA 870 is a rectangular baler for hay and straw requiring 90-100 HP. It produces bales with an 80×70 cm cross section: hay bales of 250-300 kg and straw bales of 220-250 kg. The machine uses a rotor system for consistent bale formation and includes a PLC control panel. Integrated moisture meter and weighing system provide continuous monitoring of bale moisture and weight.
Features
- Power: 90-100 HP
- Bale cross section: 80 × 70 cm
- Double knot tying system
- Hay bale weight: 250-300 kg
- Straw bale weight: 220-250 kg
- Rotor system for bale formation
- PLC control panel
- Moisture meter for humidity monitoring
- Weighing system for bale weight control
Technical specifications
- Model name: ORKA 870
- Engine power range: 90-100 HP
- Bale dimensions (cross section): 80×70 cm
- Bale weight (hay): 250-300 kg
- Bale weight (straw): 220-250 kg
- Tying: Double knot tying system
- Key systems: Rotor system, PLC control panel
- Monitoring: Moisture meter and weighing system for continuous bale control
