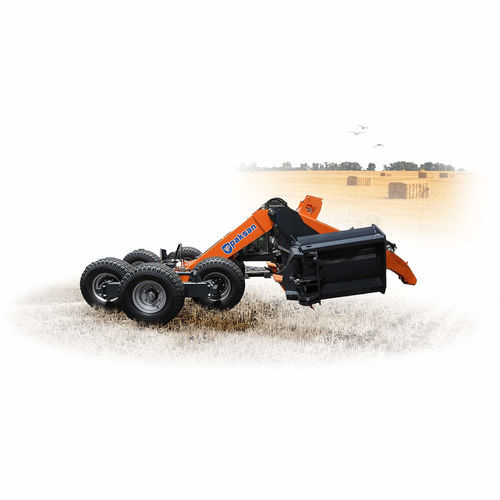

Field preparation grader blade Level 4X

Overview
Designed for precise land levelling and soil redistribution, the GPS levelling shovel Level X is compatible with 110-150 hp tractors. Available in 4 m and 5 m working widths, its upward-folding side wings simplify passage through trailers and confined areas.

Operation
Side covers, the telescopic axle and scale pistons are connected to the tractor via a jack for activation. The central piston transmits hydraulic oil from the shovel body to a solenoid valve through a tractor-mounted hydraulic pump. The solenoid valve adjusts the central piston according to signals from the GPS guidance system, enabling automated height and slope control.

Features

• GPS-controlled levelling for automated surface accuracy
• Telescopic axle for adjustable pitch
• Upward-folding side wings to facilitate transport
• Hydraulic actuation via tractor jack and pump

Technical specifications

• Working width: 4 m or 5 m
• Recommended tractor power: 110-150 hp
• Control: solenoid valve driven by GPS signal
• Hydraulic connections: tractor-mounted pump and jack
