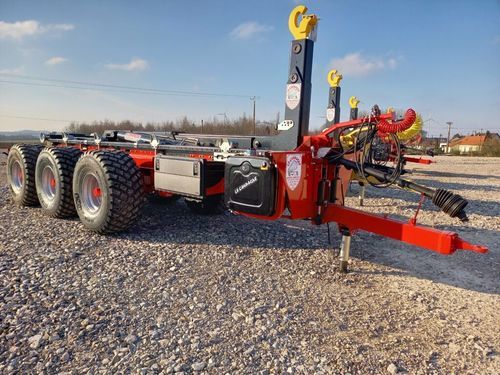

Hook lift trailer RPC

3-axle2-axleagricultural

The RPC LA CAMPAGNE container carriers are trailed container carriers for agriculture and public works professionals, engineered for intensive use and high versatility in road transport and field operations. Available in multiple axle configurations and fitted with HyvaLift « Titan » hooklifts for secure handling of containers and equipment.

General overview
The RPC carriers come in two-axle (GVW 24 t or 29 t) and three-axle (GVW 32 t) versions. They accept containers or tools on platforms from 4.50 m to 7.70 m and are fitted with HyvaLift « Titan » hooklifts with pull-off capacities ranging from 18 t to 30 t. The hydraulic circuit is built for heavy use and includes a standard rear double-acting quick hydraulic coupling.

Key features

• Removable Hardox hook
• Roller axis independent from tipping axis
• Adjustable cylinder head
• Mechanical locking between deposit and tipping modes
• Independent valve for manual operation
• Independent and removable roller

Chassis and structure
Reinforced profile-tube chassis with continuous welded cross-members and multiple bolting points for the hooklift, optimising lifting capacity, load transfer and stability during deposit/recovery operations. All parts are shot-blasted before anti-corrosion painting for a durable finish.

HyvaLift « Titan » hooklift
RPC carriers are exclusively fitted with HyvaLift « Titan » hooklifts made from high-yield steels. Available in sliding or sliding/articulated versions, they include reversible locks, anti-tilt cylinders, removable Hardox hook, rolling rollers and zinc-plated sliding pads as standard. Controls are from a cab-mounted control box, with radio remote control optional.

Hydraulic system
Powered by a driveline-driven hydraulic pump (flow 85–110 L/min) with service pressure up to 300 bar and a large oil reservoir to ensure performance under intensive use. Optional 130 L/min pump on tractor PTO available to speed hooklift cycles and reduce driveline stress.

Running gear
Equipped with Tandem or Tridem axles on multi-leaf springs to optimise loading height and center of gravity, with tie rods and balance beams to improve traction and axle articulation. Anti-tilt cylinders coupled to locking hooks ensure optimal load transfer. Optional equipment: load-steering axle (except 24 t), conventional forced-steer axles, patented "Hydroforce" system, electric or hydraulic autodirectors, pneumatic or hydraulic suspension (passive or active).

Technical specifications

• Series / designation: RPC
• Brand: LA CAMPAGNE
• Axle configurations: 2 axles (GVW 24 t or 29 t) or 3 axles (GVW 32 t)
• Compatible platform lengths: 4.50 m to 7.70 m
• Hooklift: HyvaLift « Titan » (sliding or sliding/articulated)
• Hooklift pull-off capacities: 18 t to 30 t
• Hook: removable Hardox
• Standard hydraulic system: pump 85–110 L/min, pressure 300 bar, large reservoir
• Optional pump: 130 L/min on PTO
• Rear hydraulic coupling: quick, double-acting (standard)
• Chassis: reinforced profile tubes, continuous welded cross-members, shot-blasted before painting
• Running gear: Tandem/Tridem multi-leaf axles, tie rods, balance beams
• Locking: mechanical between deposit and tipping, hooks coupled to anti-tilt cylinders
• Controls: cab control box, radio remote optional
• Steering options: load-steering axle, forced-steer axles, Hydroforce, electric/hydraulic autodirectors
• Suspension: pneumatic or hydraulic (version dependent)
