Automatic egg vacuum lifter
manual

automatic egg vacuum lifter
automatic egg vacuum lifter
Add to favorites
Compare this product


Characteristics

Other characteristic
automatic, manual

Description

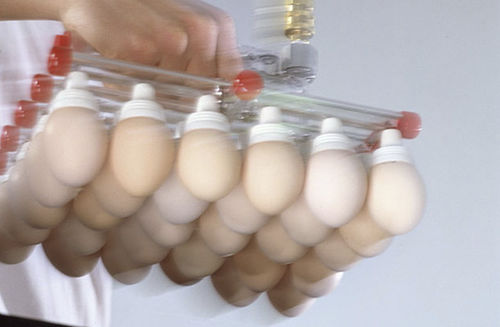

Benefits A lightweight, gentle, reliable tool for the semi-automatic transfer of eggs from pulp tray to setter tray, the vacuum egg lifter eliminates the risk of damage to the eggs. Constructed out of clear plastic to give complete visibility from handle to cup, there are no projecting studs, depressions or mismatched welds or joints in which dirt can accumulate. The unit can be fitted with a variety of standard egg lifters and is available for matrix and honeycomb structured setter trays. Unit consists of vacuum pump with 1 or 2 vacuum heads. How it works -The cups of the vacuum lifter are placed over the eggs on the incoming (transport) tray -The eggs are sucked onto the vacuum cups -An operator positions the eggs in the setter tray using the vacuum egg lifter -Eggs are released immediately when the valve lever is depressed Technical specifications Capacity - up to 36 eggs per head Installed power - 0.2 kW Air consumption - 50 m3/hour Noise level - 50 - 53 dB(A) Weight - 825 gram (empty) Dimensions - 310 x 260 x 160 mm (empty) Suitable for - Matrix structured setter tray Honeycomb structured setter tray
