Benefits

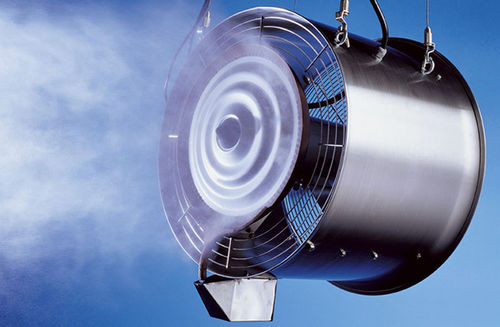

Designed for installation in setter and hatcher attics to maintain the correct humidity levels, the humidifier rotator produces a very fine mist of water for maximum transfer of water to air. Variable water supply regulation allows for climate specific humidification control. Robust, easy to clean stainless steel body. Very little maintenance required.
How it works
-Water hits pins located around a roatating disc (2,850 RPM) to form small droplets
-An inbuilt, rotating fan distributes the water as a fine mist to increase relative humidity as the mist evaporates
-Water that is not atomised is collected and reused
Technical specifications
Capacity - 4,000 m3/hour
Water capacity - Adjustable between 10 - 40 ltr/hour
Fan speed - 1,420 RPM
Range / throw - 20 - 35 m
Installed power - 0.4 kW
Supply water pressure - 1 - 6 bar
Diameter - 560 mm
Length - 420 mm
Weight - 38 kg
Material - Stainless steel, easy to clean body
Including - Connection kit
