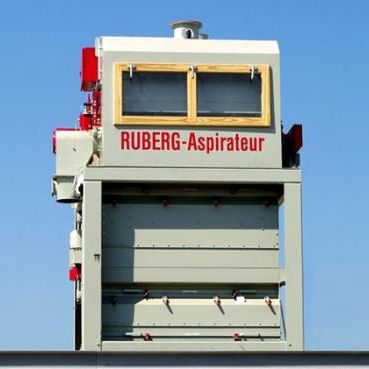

Grain pre-cleaner RVS series

automaticwith aspirator

RVS grain cleaners are ideal for post-harvest lines thanks to their robust design and reliable performance. They provide air pre-cleaning of the input material first and optional air cleaning of the output material. Simple set-up and physical control via an inspection window allows the operator to ensure the best control of the cleaning process. -output 40 t/h to 300 t/h -precise cleaning and pre-cleaning of cereals and grains -world leader in malting barley -maximum dust content up to 10 mg/m3 with filter -quick change of screens -the circular movement of screens -long service life -low service requirements Cleaners with emission levels up to 10 mg/m3 The RVS model is basically equipped with a recirculation aspiration chamber at the material inlet, from which only 10% of the airflow is extracted. This ensures a low level of outlet emissions of VOCs to air. Combined with an automatic dosing system and a suitable screen composition, optimum filling of the scrubber is ensured for highly efficient screening on the main and sand screens. The machine is equipped with a number of inspection holes for quick checking of the final cleaning process. Integrated flaps allow the operator to adjust the number of final fractions in a very simple way.
