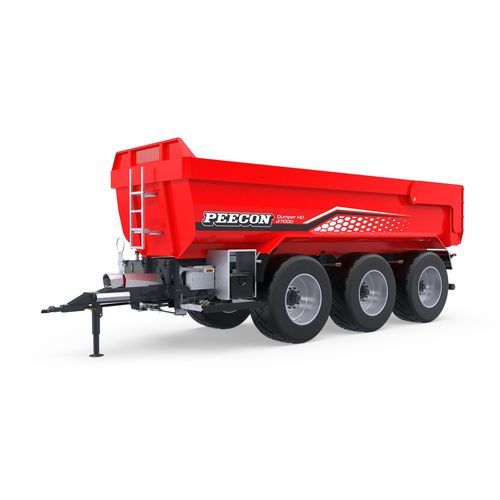

Dump trailer Cargo 27000 HD

dump trailer
dump trailer
dump trailer
Add to favorites
Compare this product


dump, tipping
Number of axles
20 t...40 t
Other characteristic
Empty weight

9,600 kg (21,164.4 lb)

Load volume

17 m³ (600.3 ft³)

Loading case lenght

6,500 mm (255.9 in)

Loading case width

2,550 mm (100.4 in)

Loading case hight

1,200 mm (47.2 in)


The Peecon Cargo Dumper line has been designed to perform heavy tasks. As a standard, these Cargos hâve been provided with a number of options to ensure tremendous durability. They are true top performers under severe conditions. The Cargo dumper range is available with a load capacity of 13 to 27 tons. There is an appropriate model available for everyone. The Euroline boxes of these Cargos have, as a standard, been made of Hardox 450 with a thickness of 6 mm. The top of the box has been reinforced by means of a heavy-duty tube. The boxes are built conically, resulting in excellent discharge of product. The heavy-duty tubular châssis may be provided with different types of undercarriages with continuous axles. The Cargos 27000 and 27000 XL Sand hâve, as a standard, been provided with a hydraulically suspended undercarriage, which may optionally be supplied with Tridec HD-0. These models hâve their own hydraulics System guaranteeing a large tipping capacity. The tipping cylinder has been optionally positioned, allowing maximum use of capacity. As a standard, the Cargo dumper structure is blasted, spray galvanised, and provided with at least two layers of coating. The long list of options will ensure complété customisation of our Cargo dumpers to your wishes. Ail models hâve an exterior width of 2550 mm, which meets the current rules and régulations, while also being prepared for future ones. Wider boxes are available upon request.
