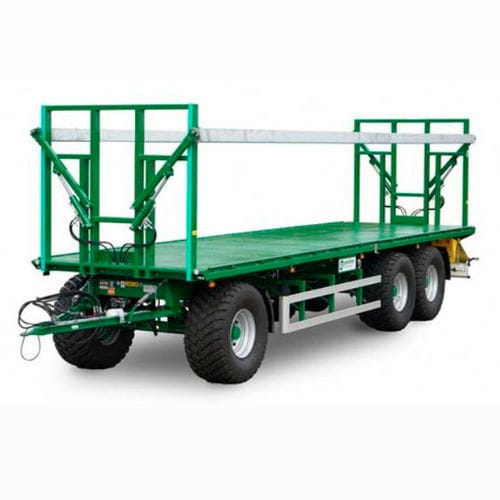

Flatbed trailer PWO 24

semi-mounted3-axleagricultural

In vegetable cultivation, the transport of the harvest and seed is often carried out using crates or pallets. The agroliner three-axle platform trailer has been developed for these requirements. The basic version of the PWO24 offers a solid foundation for many purposes with an attractive price/performance ratio. Included in the basic version are: Tyres - 6 x 385/65 R22.5 factory refurbished tyres on centre well rims 80 km/h permitted Axles - ADR tapered roller bearing axle, 3 x 11.3 tonnes axle load (105 km/h), 2050 mm track width without ABS up to 60 km/h, wheel brake 406 x 120 mm, 130 mm square axle Springs - 2-layer parabolic spring suspension, 100 mm wide, approved for up to 105 km/h, overload protection on all 6 springs, rocker arms between the 2nd and 3rd axle Steering - Turntable steering with ball bearing turntable and type-tested triangular drawbar 1,990 mm, Height adjustable as well as drawbar relief Brake system - dual line service brake system with automatic load-dependent brake force control (ALB), 2x, 6 x diaphragm brake cylinder; spindle parking brake acting on 2nd axle Chassis frame - welded steel construction; double T main load bearer Plateau - 4 mm steel floor, 6 x lashing points on the outer side frame profile (12 x in total) Electrical system: - 12 volt system according to the guidelines of the StVZO (German traffic laws) with 7-pin connecting cable, triangular reflector and yellow side reflectors, 3 function lights (rubber mounted), number plate lights, position lights
