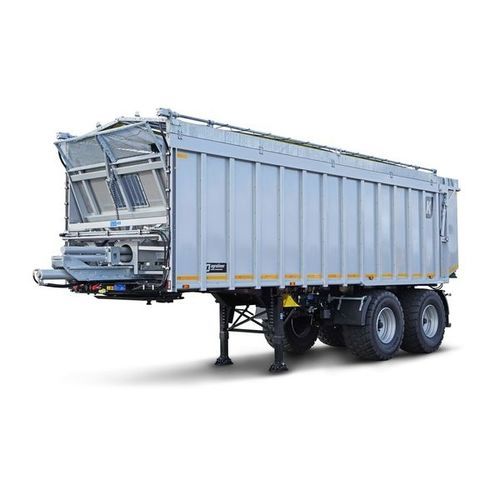

Dump trailer SAW 32

agriculturalgrain20 t...40 t

Due to the horizontal pusher system, the highest possible operational security is guaranteed. So that the load can be pushed off with the lowest possible friction values, the agroliner pusher trailer has a stainless steel base as standard and the pusher plate is coated with VA sheet steel plates. The side panels are designed to be torsion-resistant so that the seal, particularly with bulk cargo such as rapeseed and grain, is guaranteed to be long-lasting. The standard large volume tailgate effectively increases the loading volume. The basic version of the SAW32 offers a solid foundation for many purposes with an attractive price/performance ratio. Included in the basic version are: Tyres - 4 x 425/65 R22.5 "NEW" on centre well rims approved for 100 km/h Axles - 12 tonnes ADR axles (60 km/h), 2050 mm track width (technically 105 km/h), wheel brake 420 x 180 mm, 150 mm square axle Springs - 24 tonnes parabolically suspended linked steering unit with dynamic brake compensation, 1810 mm axle wheelbase Kingpin - 2-inch Steering - rear axle, mechanically-hydraulically forced-steered via coupling plate (Ackerman steering) Support - 2 x mechanical saddle landing gear with rapid speed Chassis - welded construction, main load bearer made from weight-optimised I beams Brake system - dual line service brake system with automatic load-dependent brake force control (ALB), 4 x diaphragm brake cylinder, spindle parking brake acting on first axle Hydraulic system - the tractor must be equipped with two double-acting controllers: 1 x connection for the sliding CHASSIS
