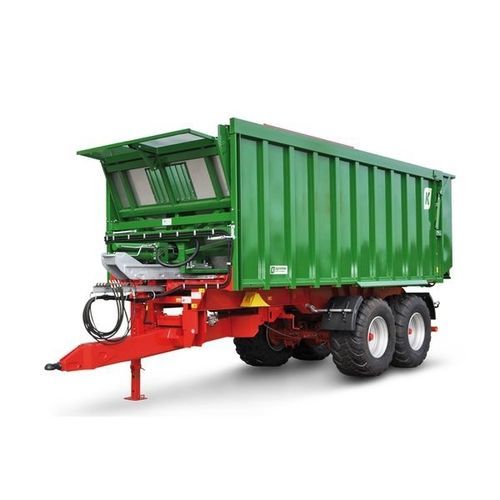

Dump trailer TAW20

tandem axlegrain10 t ... 20 t

Due to the horizontal pusher system, the highest possible operational security is guaranteed. So that the load can be pushed off with the lowest possible friction values, the agroliner pusher trailer has a stainless steel base as standard and the pusher plate is coated with VA sheet steel plates. The side panels are designed to be torsion-resistant so that the seal, particularly with bulk cargo such as rapeseed and grain, is guaranteed to be long-lasting. The standard large volume tailgate effectively increases the loading volume. Basic version The basic version of the TAW20 offers a solid foundation for many purposes with an attractive price/performance ratio. Included in the basic version are: Tyres:4 x 550/60-22.5 16PR on centre well rims 40 km/h, profile 328 Axles:ADR tapered roller bearing axle, 2 x 11.3 tonnes axle load (60 km/h), 2050 mm track width approved up to 60 km/h without ABS (technically 105 km/h), wheel brake 406 x 120 mm, 130 mm square axle Springs:24 tonnes parabolically suspended linked steering unit with trailing links and dynamic axle compensation, 100 mm wide, approved up to 105 km/h, 1525 mm axle wheelbase Draw gear:rigid drawbar with 40 mm flanged towing eye DIN11026 screwed on (coupling required on the tractor, DIN 11029), mechanical saddle landing gear with rapid speed Chassis frame - welded construction, main load bearer made from weight-optimised I beams Brake system:dual line service brake system with automatic load-dependent brake force control (ALB), 4 x diaphragm brake cylinders, spindle parking brake acting on one axle
