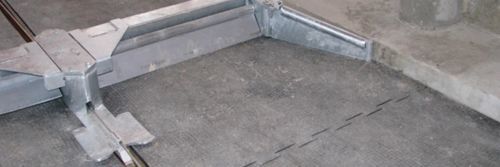

U-shaped manure scraper Pendelklappschieber

for slatted floorsrubberautomatic

The Swing Flap Scraper is a proven device for the effective cleaning of walkways and exercise yards. Thanks to its robust, galvanized construction, it effortlessly handles large quantities of solid and liquid manure on various floor surfaces. Overview: The Swing Flap Scraper with side wings ensures effective and thorough cleaning of walkways in barns. Its galvanized steel construction makes it particularly resistant to corrosion and mechanical stress. With a variable working width of up to 12 meters, it flexibly adapts to different barn sizes and ensures reliable manure removal. - Material: Galvanized steel - Working width: Up to 12 meters, adaptable to various barn sizes - Height: 20 cm - Side wings: Automatic adjustment to different walkway widths - Level regulation: Enables effective cleaning even on uneven floors - Scraper plates: Automatic opening on return for trouble-free operation - Areas of application: Concrete, cast asphalt, rubber flooring, and precast concrete floors Additional Options: - Custom scraper plates: Optionally equipped with rubber or plastic strips. - Drive gate integration: Can be equipped with a drive gate and controlled from the milking parlor. - Custom-made: The PKS type (without side wings) is individually manufactured according to customer requirements. Functionality: The Swing Flap Scraper consists of a robust metal construction with movable scraper plates and side wings that efficiently remove manure and dirt from walkways and barn floors. It is guided along the walkways, pushing the manure into designated drop-off areas. The construction allows use on various surfaces such as concrete, cast asphalt, rubber flooring, and precast concrete slabs. During the return run, the scraper plates open automatically, allowing the scraper to return to its starting position without resistance. Thanks to their flexible design, they adapt to different floor conditions, ensuring thorough cleaning without much manual effort. Advantages of the Swing Flap Scraper: - Robust construction: The galvanized steel frame ensures high durability and reliable protection against corrosion and wear. - High capacity: Efficiently handles large quantities of solid and liquid manure, reducing the number of cleaning cycles required. - Automatic scraper plate opening: Ensures resistance-free return of the scraper and optimizes the cleaning process. - Flexibility: The side wings automatically adapt to different walkway widths, enabling thorough cleaning. - Level regulation: Allows adaptation to uneven floors and ensures even manure collection over the entire area. - Versatile floor adaptation: Works on various surfaces such as concrete, cast asphalt, rubber flooring, and precast concrete slabs. Technical Specifications / Features: - Material: Galvanized steel - Working width: Up to 12 meters, adaptable - Height: 20 cm - Side wings: Automatic adjustment - Level regulation: For uneven floors - Scraper plates: Automatic opening on return - Areas of application: Concrete, cast asphalt, rubber flooring, precast concrete floors - Custom options: Rubber/plastic scraper plates, drive gate integration, custom-made PKS type
