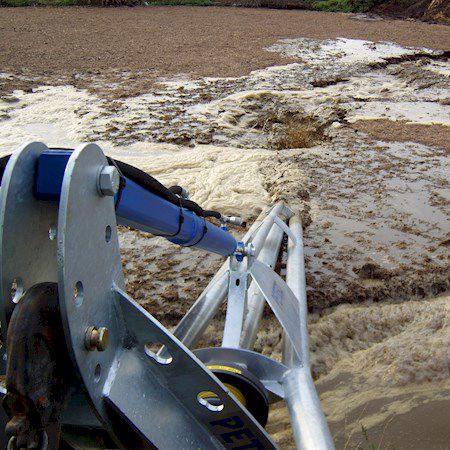

Inclined agitator JU8

stainless steelPTO-drivenhydraulic

Shaft supported by 4 bearings: 2 tapered with conical clamping elements at the tractor end, 2 intermediate bearings for stabilization. Frame completely of hot-dip galvazined steel, reinforced by two lateral tubes and one square tube at the top Thick-walled outer tube, reinforced and galvanized (127 mm) Pinion shaft 1 ¾ " (50 mm, shaft 55 mm) Three-point hitching system Massive agitator support Hydraulic cylinder (double-acting) for adjustment of entry angle High-strength stainless steel propeller (2 blades) - double reinforced (dia.: 650 mm) Cutter knife at the propeller Standard total length: approx. 8.5 m Max. speed: 1000 rpm short-time duty, 800 rpm continuous duty
