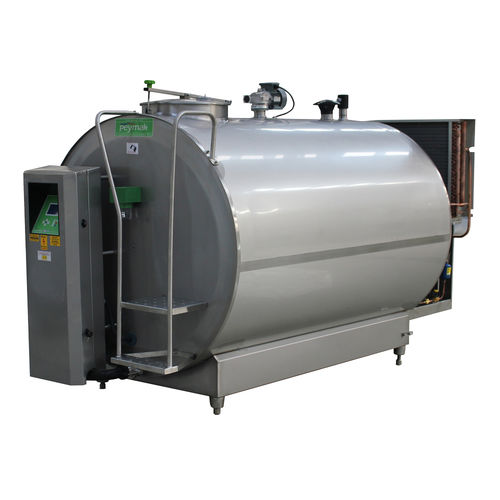

Milk tank PHS
horizontalstainless steelwith cooling system

milk tank
milk tank
milk tank
milk tank
milk tank
milk tank
Add to favorites
Compare this product

Characteristics

Fluid
for milk
Construction
horizontal
Material
stainless steel
Other characteristic
with cooling system
Capacity

2,000 l, 2,500 l, 3,000 l, 4,000 l (528 gal)

Description

- AISI 304 quality stainless steel - 1st wall base is 2 mm and it also has 0,8 mm Ep type laser welded cooler evaporator surface that is coupled to wall. - Isolated wall is 1,5 mm for 2000 - 4000 Lt capacity tanks and 2 mm for 5000 - 120000 Lt capacity tanks. - Cooler unit and tank body are mounted on single chassis. - There are 1 0,34 HP 33 d/d redactor and stainless steel mixer blade on redactor. There are 2 mixer at 6000 Lt, 8000 Lt, 10000 Lt and 12000 Lt milk cooling tanks. - Isolation range has 60 mm thickness, isolated with water based, non-HCFC high density polyurethane foam material. - Product output has DN50 male sleeve, butterfly valve. - There is also AISI 304 quality stainless steel Ø 500 mm manhole cover. - There is Ø 100 mm covered product entry on the manhole cover. - There is Ø 90 ventilation outlet. - There is manual measuring scale with ‰ 3-4 sensitivity rate. - It has anti-slippery AISI 304 quality ladder. - Design that allow zero liquid to remain in the rank during discharge. - Welded sections are welded with 1st class Argon TIG welding and has 1st class smooth polishing. - There are adjustable bolted stands under the tank
