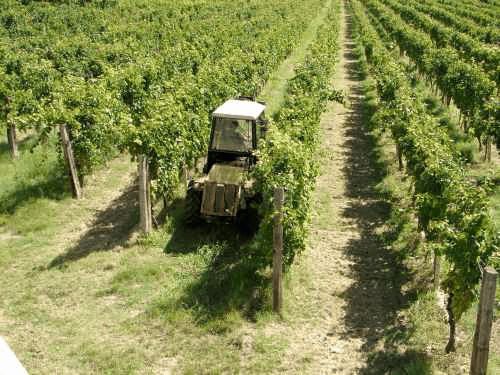

Narrow tractor P135.80

narrow tractor
narrow tractor
narrow tractor
narrow tractor
narrow tractor
narrow tractor
Add to favorites
Compare this product


Number of cylinders
Other characteristic
compact, with cab, with ROPS, front PTO
Engine power

55 kW
(75 hp)


2,482 cm³
(84 US fl oz)

PTO speed

540 rpm
(3,392.9 rad.min-1)


300 Nm

Maximum speed

40 km/h
(24.9 mph)

Total length

3,115 mm
(122.6 in)

Total height

2,210 mm, 2,290 mm
(87 in, 90.2 in)


2,000 kg, 2,300 kg
(4,409.2 lb, 5,070.6 lb)


The new P135.80 Xtra-Compact introduces a new dimension in the category of compact tractors. Now, You can ride wherever You want! No more clogged radiator! ICMS (intelligent cooling management system) - is an automatic system inverting the air flow trough the radiator and cleaning it. It reduces the front overhang and increases performace of the watercooling system (pat. pending 201700133960). ENGINE The new engine KOHLER KDI 2504 E5/23 TCR features the most advanced common-rail system available on the market, specifically designed for extreme durability and resistance to the most severe conditions of use. The high-pressure pump, at 2000 bar, provided with the G3S solenoid injectors, allow a precisely-calibrated fuel dose during the injection process. The turbo-compressor with waste-gate valve has been specially calibrated to reduce any response delay and provide the right amount of air for an optimal supply of torque and power. The use of an intercooler, ensures the correct air inlet temperature to achieve high torque at low rotation speeds while achieving emissions compliance. The 4 valves per cylinder distribution has been designed to mount the injector in a perfectly vertical and centered position compared to the combustion chamber. This solution allows for optimizing filling, fuel atomisation and mixing of the same with the oxygen present in the combustion chamber.



No catalogs are available for this product.
