Temperature humidity sensor SHT35

airdigital

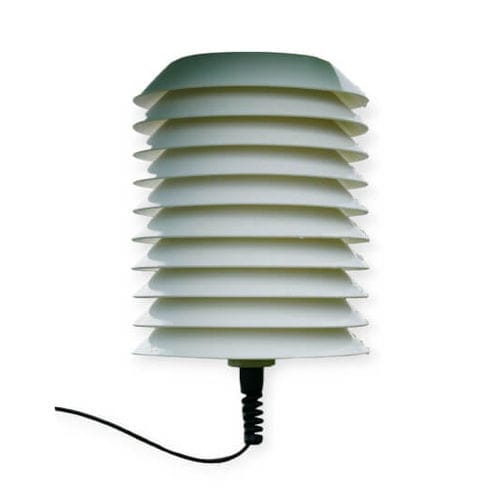

Sensor SHT35 is Sensirion’s relative humidity and air temperature sensor that sets new standards in terms of its size and intelligence. It comes with a white protective guard whose function is to block the sensor from direct sunlight and direct impact of the wind, while at the same time shapes the air filtration to get the most accurate temperature results. Technical characteristics of the temperature and relative humidity sensor (SHT35) Resolution - 0.1% - 0.04°C Accuracy - ±1,5% - ±0.1°C Repeatability - ±0.1% - ±0.1°C Response time(63%) - 10s - 15s Work area - 0 to 100% - -40 to 125 °C Electrical characteristics - Power supply voltage - 2.1-3.6 V Power supply - At idle 0.15 μA; in measurment 300 μA Stress loss power - At idle 0.50 μW; in measurment 0.9 mW Communication - digital two-way interface, I2C protokol Technical characteristics - Sensor box - POM pipe profile ∅15 mm Sensor protection - 70 μm stainless steel mesh Cable lenght - 1.5m Connector - 3.5mm stereo connector Dimensions - ∅15 x 160 mm Weight - 75 g Warranty - 12 months
