Aluminum cable 223580

plug

Description

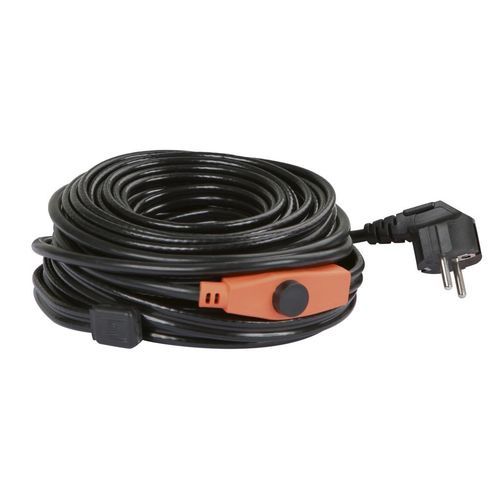

The frost-protection heating cable with integrated thermostat is supplied in various lengths and heating powers. It prevents freezing of water pipes down to approx. -45 °C. The product is ready to use with a Schuko plug and is designed to be connected to a 230 V supply via a residual-current device (RCD).

Main features

• Integrated frost thermostat (switch-on approx. +5 °C, switch-off approx. +13 °C)
• Schuko plug
• Supply voltage: 230 V
• Prevents freezing down to approx. -45 °C
• Available in multiple lengths with corresponding heating powers
• Do not shorten the cable: purchase the correct length; any excess length can be coiled around the pipe
• Apply on the underside of the pipe
• Do not bend the cable; observe the maximum bending radius (approx. 35 mm)
• Recommended fixing: insulating tape or aluminum adhesive tape
• For plastic pipes: wrap the pipe first with aluminum adhesive tape before installing the cable
• Maximum recommended insulation: 13 mm of insulating material above pipe and cable
• Do not insulate the thermostat; install it at the coldest point of the pipe for correct temperature detection
• Protection: avoid installation where animals graze and protect the cable from bites
• The water pipeline must always be connected to earth

Characteristics / technical specifications

• Type: frost-protection heating cable with integrated thermostat
• Rated voltage: 230 V
• Thermostat operating temperatures: switch-on approx. +5 °C, switch-off approx. +13 °C
• Maximum frost protection: up to approx. -45 °C
• Maximum bending radius: ≈ 35 mm
• Recommended insulation above pipe and cable: maximum 13 mm
• Recommended fixing: insulating tape or aluminum adhesive tape
• Do not shorten the cable (purchase the correct length)
• Installation: underside of the pipe; thermostat must not be insulated and should be placed at the coldest point of the pipe
• Mechanical protection: avoid animal bites; do not install where animals graze
