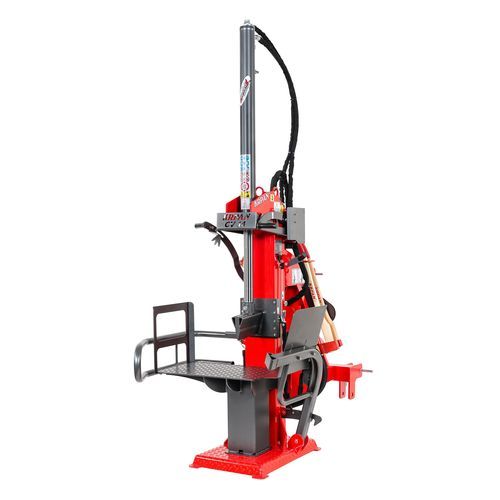

Hydraulic wood splitter CV 14 K pro

verticaltractor-mountedPTO-driven

Drive:P.T.O. shaft Splitting Force:13 t Recommended Tractor Power:21 kW / 29 HP Standard equipment "2 Speed Automatic" valve with two automatic splitting speed levels, depending on operating load on the wedge/ Cast-iron pump, Integrated double-bottom tank containing a large volume of oil: Tehnical features Drive:P.T.O. shaft Drive Power:/ Splitting Force:13 t Piston Hub:970 mm Splitting Height:550/1100 mm Splitting Speed (S2- S1)-R*(s/1000mm):(3,3-5,9)-2,6 Oil Flow:52 (540) min-1 Oil Quantity in Tank:30 l Recommended Tractor Power:21 kW / 29 HP Dimensions W×L×H×(Ht)**:805×1160×2840×(1850) mm Weight:385 kg Table with extension and lifting device plate:Optional Cast-Iron Pump:Standard Winch (750kg):Optional
