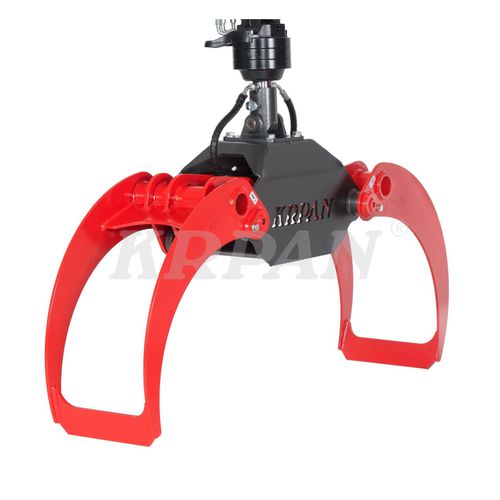

Forestry log grapple GR 130
agriculturalfor cranes

forestry log grapple
forestry log grapple
forestry log grapple
forestry log grapple
forestry log grapple
Add to favorites
Compare this product


Characteristics

Applications
forestry, agricultural
Mounting
for cranes

Description

MAX. OPENING WIDTH:1300 mm LOAD CAPACITY:3200 kg WEIGHT:138 kg Tehnical features Max. Opening Width:1300 mm Smallest Diameter:70 mm Length - closed:807 mm Height - closed:515 Height - open:770 mm Width 1:423 mm Width 2:383 mm Width 3:310 mm Height - partly closed:847 Cross-Section:0,23 m2 Max. Operating Pressure:230 bar Gripping Force at Max. Pressure:12,5 kN Load Capacity:3500 kg Weight:138 kg
