Farm building fan KLR seriesfor air circulationportableaxial
Add to favorites
Compare this product
Characteristics
- Application
- farm building
- Function
- for air circulation
- Installation
- portable
- Other characteristic
- axial, panel
- Air volume
Max.: 34,200 m³/h
(1,207,761.6 ft³/h)Min.: 6,250 m³/h
(220,716.7 ft³/h)
Description

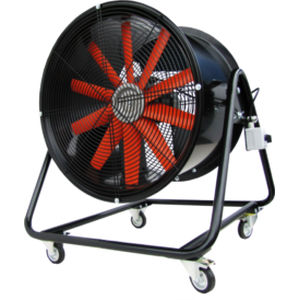

Mounted on a roll-around, tilting frame. Protected with grid/mesh on both sides.
The frame allows for adjusting the angle of the air stream produced by the fan.
Fans designed for moving air and other chemically inert agents. They are designed with a particular emphasis on achieving high flow para-meters at low noise level.
Standard configuration:
Diameter range: 355 ÷ 1000 mm
Airflow: 4.150 ÷ 34200 m3/h
Used motors: 0,25 ÷ 3,0 kW
Operating temperature: -20 ÷ +55°C
Insulation class: F
Ingress protection: IP 55
Airflow direction: WS
