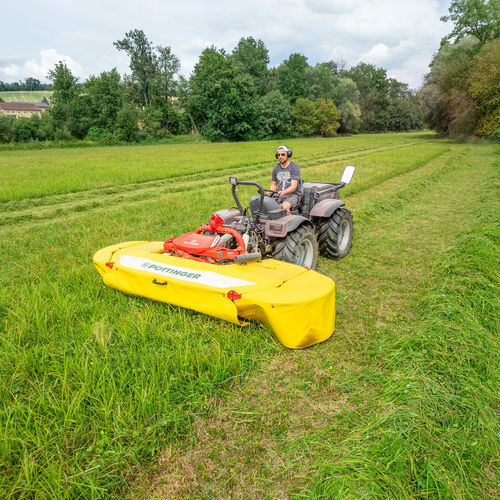

Mounted mower NOVACAT F ALPIN series
chain10 blades12 blades

mounted mower
mounted mower
mounted mower
mounted mower
mounted mower
mounted mower
mounted mower
mounted mower
mounted mower
mounted mower
mounted mower
mounted mower
mounted mower
mounted mower
mounted mower
mounted mower
mounted mower
mounted mower
mounted mower
mounted mower
mounted mower
mounted mower
Add to favorites
Compare this product


Characteristics

Mounting
mounted
Technology
chain
Number of blades
14 blades, 12 blades, 10 blades
Number of discs
7 discs, 6 discs, 5 discs
Other characteristic
grass
Working width

2.2 m, 2.62 m, 3.04 m
(7'02" , 8'07" , 9'11" )

Power required

35 ch, 45 ch, 55 ch
(35 hp, 45 hp, 55 hp)

Swath width

Min.: 1.1 m
(3'07" )

Max.: 2.1 m
(6'10" )

PTO speed

540 rpm
(3,392.9 rad.min-1)

Weight

400 kg, 450 kg, 490 kg
(881.8 lb, 992.1 lb, 1,080.3 lb)

Description

NOVACAT F ALPIN mowers are the lightest in their class. They are available with working widths of 2.20 / 2.62 / 3.04 m. Our engineers have succeeded in keeping the weight to just 400 / 450 / 490 kg. Thanks to the low weight and short design of the mower, it can be driven by small tractors and twin axle mowers. This protects the valuable sward and the forage remains clean. The basis for clean forage A mowing process that conserves the grass is the best basis for clean forage. Ultimately, this is about maintaining the correct cutting height of 5-7 cm. That is how crude ash ingress is reduced to a minimum right from the start of the harvest chain. Subsequent harvesting machines then do not have to work so close to the ground to collect all the forage. The crop remains clean. At the same time, sufficient residual assimilation area remains for the grass to sprout again more quickly. If the ground is not level, it is essential that the mower can adapt well to any bumps. With our NOVACAT F ALPIN mowers you set the basis for clean forage thanks to their unique ground tracking and the excellent cutting quality – as well as rapid plant growth. Slope ready and reliable - PÖTTINGER developed its ALPIN mowers to meet these requirements back in 2003 and has continued their development ever since. In alpine terrain, every kilogram of weight that can be saved is just as important as the compactness of the machine. For best driving stability on steep inclines, the centre of gravity must be as close as possible to the tractor. Lightweight, smooth running yet robust mowers are PÖTTINGER's answer to these specifications.
