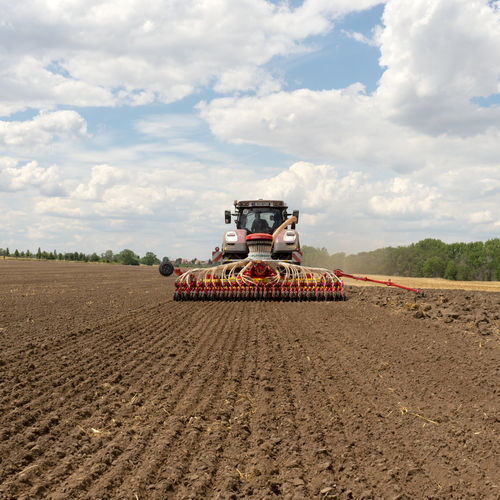

Hopper seed drill AEROSEM F

disc24-rowwith fertilizer applicator

Overview
The AEROSEM F front-hopper seed drill performs seedbed preparation, consolidation, seeding and fertilisation in a single pass on medium to heavy soils. Precision DUAL DISC double-disc coulters (Ø 350 mm) with coulter pressure up to 60 kg provide accurate seed placement for consistent emergence. The IDS distribution head and the AMICO F pressurised front hopper ensure precise lateral distribution across a wide range of crops. An optional partitioned pressurised hopper with double metering allows simultaneous seed and fertiliser application. Separation of the seed drill combination and hopper improves weight distribution, reduces ground pressure and eases tractor load, while enhancing road-transport safety.

Customer benefits

• Consistent seed placement and soil contact
• Improved and uniform emergence
• Operational flexibility with multiple working widths and row spacings
• Reduced tractor load and improved transport safety

Technology / Key components

• DUAL DISC double-disc coulters (precision coulters for accurate seed placement)
• Coulter diameter: 350 mm
• Maximum coulter pressure: up to 60 kg per row
• IDS distribution head for precise lateral distribution
• AMICO F pressurised front hopper; optional partitioned pressurised hopper with double metering (seed + fertiliser)
• Coulter rail design and seedbed preparation features

Machine Advisor / Assistance systems

• METERING WHEEL ASSIST: tool to select the appropriate metering wheel for the seed material (smartphone/tablet/PC tool available)
• TRAMLINE ASSIST: supports setup of tramline rhythm, tramline row positions and number of rows to deactivate

Technical data (table)
Columns: AEROSEM F 3000 DD | AEROSEM VF 4000 DD | AEROSEM VF 5000 DD | AEROSEM VF 6000 DD
Working width: 3 m | 4 m | 5 m | 6 m
Row spacing: 12.5 cm | 12.5 cm | 12.5 cm or 15.5 cm | 12.5 cm or 15.0 cm
Coulter pressure: 60 kg | 60 kg | 60 kg | 60 kg
Coulter spacing (front to rear): 30 cm | 30 cm | 30 cm | 30 cm
Transport width: 3.00 m | 2.75 m | 2.75 m | 2.75 m
Number of rows: 24 pcs | 32 pcs | 40 or 32 pcs | 48 or 40 pcs

Technical specifications

• Model / series: AEROSEM F
• Usage: front-hopper seed drill for medium to heavy soils; combined seedbed preparation, consolidation, seeding and fertilisation
• Coulter type: DUAL DISC double-disc coulters
• Coulter diameter: 350 mm
• Maximum coulter pressure: up to 60 kg per row
• Coulter spacing (front to rear): 30 cm
• Working widths available: 3 m, 4 m, 5 m, 6 m (model dependent)
• Row spacing: primarily 12.5 cm; some variants offer 15.0 / 15.5 cm
• Transport width: 3.00 m (3000 model) or 2.75 m (4000/5000/6000 variants)
• Distribution: IDS distribution head for precise lateral distribution
• Front hopper: AMICO F pressurised hopper; optional partitioned pressurised hopper with double metering for simultaneous seed and fertiliser application
• Optimised weight distribution via separation of seed drill combination and hopper to reduce ground pressure and improve road transport safety
