Drop-side trailer PT510
tandem axleagricultural10 ton

drop-side trailer
drop-side trailer
drop-side trailer
drop-side trailer
Add to favorites
Compare this product


Characteristics

Construction
drop-side
Number of axles
tandem axle
Application
agricultural
Payload
10 ton
Brake system
with pneumatic braking
Other characteristic
3-way
Empty weight

14,200 kg
(31,305.6 lb)

Recommended power

74 ch
(74 hp)

Load volume

13.2 m³
(466.154 ft³)

Loading case lenght

4,545 mm
(178.9 in)

Loading case width

2,420 mm
(95.3 in)

Loading case hight

1,250 mm
(49.2 in)

Description

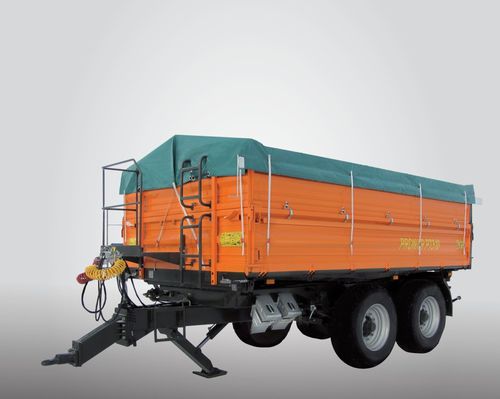

PRONAR trailer PT 510– this excellent equipment for irregular surface areas is well appreciate in agriculture as well as in other industries. This pallet tandem PT510 trailer is equipped with resistant chassis frame made of rectangular closed profiles, three-way tipping system , reinforced drawbar, hydraulic supporting leg , parabolic springs suspension and solid radial tires. The maximum permissible speed is 40km/h . The buyer has a choice between pneumatic and hydraulic breaking system. The standard option consists of three way tipping system with the shut off valve ( which activates while tipping to the sides) and pneumatic cylinder. We use only high quality materials for production like double components chemically hardened paints. RESISTANT The frame made of closed profiles resistant to twisting . All sidewalls, body and chassis elements are made thicker than competition products. MULTIPLE USAGE The width of the trailer (2420mm) enables transport of granular materials as well as euro pallets and grid box pallets. WELL EQUIPPED Wheel chocks and racks, rear mudguards, service support leg for loading case, ladder and side steps facilitating access to the loading case, bars for sidewalls and extensions support. FUNCTIONAL Ballast of the tractor’s hitch facilitates steering on irregular fields and increases pulling power. STABLE Thanks to wide positioned wheels.
