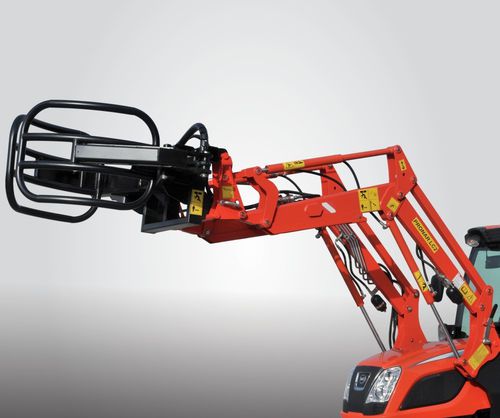

Front loader LC2

front loader
front loader
front loader
front loader
Add to favorites
Compare this product


Characteristics

Lifting capacity

1,300 kg (2,866 lb)

Tractor power

Max.: 70 ch (70 hp)

Min.: 40 ch (40 hp)

Description

The PRONAR LC2 front loader is a device intended to work with loading and unloading of various materials. It is equipped with suspension system which reduces the impact of transported mass when driving the tractor on uneven roads. In addition it is equipped with the third circuit hydraulic system necessary to work with the active grippers such as bale grapples, manure grapples. The front loader has the control joystick located in the tractor cabin and it is equipped with the function of running the attached equipment in parallel to the ground which is very helpful during loading work with usage of eg. pallet forks. The front loader is mounted on the tractor frame by a special carrier frame. Front loader and frame are made of steel components which provides high strength and relatively low weight. As a result, the loader weight does not exceed 356 kg. Lifting and lowering is done by using two hydraulic cylinders supplied with external hydraulic system of the tractor. Front loader LC2 mounted on eg. the Pronar 320 AMK tractor, equipped with front linkage and PTO, is an example of a modern machine that can be used both on the farm, as well as with municipal work in the city where small size, maneuverability and good performance are the main advantages.
