Flatbed trailer T023M
2-axlefor bales10 t ... 20 t

flatbed trailer
flatbed trailer
flatbed trailer
flatbed trailer
flatbed trailer
flatbed trailer
Add to favorites
Compare this product


Characteristics

Construction
flatbed
Number of axles
2-axle
Application
for bales
Payload
10 t ... 20 t
Empty weight

3,830 kg
(8,443.7 lb)

Recommended power

83.2 ch
(83.2 hp)

Loading case lenght

9,695 mm
(381.7 in)

Loading case width

2,410 mm, 2,517 mm
(94.9 in, 99.1 in)

Loading case hight

1,680 mm
(66.1 in)

Description

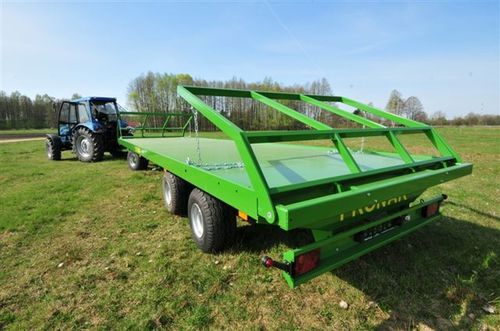

PRONAR T023M bale transportation trailer – reliable, failure-free and universal. Perform excellently when transporting cargo volume requiring large, streight surfaces, mainly to transporting straw or hay/silage bales, pallets and euro-pallets. Pronar T023M is a modernised version of the trailer Pronar T023. The floor of this trailer is highly resistant to deformation because of reinforced 4 mm thick floor. Extended rear frame adjusting it to the load parameters. Single central weld on the floor improves aesthetic and user properties as well as durability of the trailer and eliminates the occurrence of corrosion. Chemically hardened and UV-resistant painting materials provides protection against corrosion. Stable and strong parabolic spring suspension provides longer service life. 1-DURABLE Light, stable construction and optimal floor thickness . 2-EFFICIENT The height of the ladders allows to load up two layers of bales, low construction ensures easier loading. 3-UNIVERSAL Width of load platform adapted to euro-pallets transport. 4-IN ACCORDANCE WITH EUROPEAN STANDARDS Rear under run protection in line with EU directives, homologated rear hitches.
