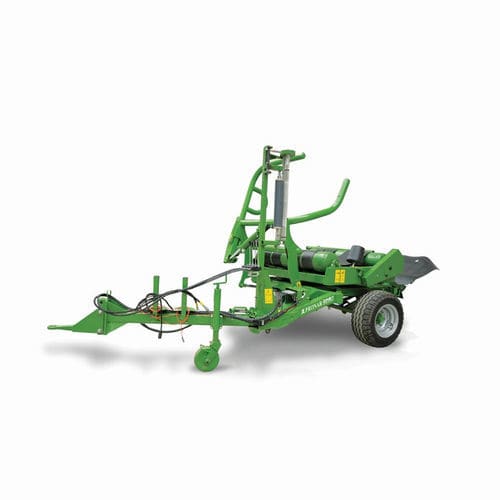

Individual bale wrapper Z245/1
roundtrailed

individual bale wrapper
individual bale wrapper
individual bale wrapper
individual bale wrapper
Add to favorites
Compare this product


Characteristics

Type
individual
Bale type
round
Other characteristic
trailed

Description

The bale wrapper PRONAR Z245/1 is designed for medium and large-size green crops farms. Loading arm allows loading a bale on the wrapping table without stopping, what eliminates the need of using a second tractor. The bale wrapper as standard is equipped with a hydraulic cutting mechanism what saves the time. Turntable allows unloading a bale in two ways: on their side or front surface and then easily load it onto the trailer. Hydraulic cutting and grabbing system as well as the wrapping counter are mounted in the tractor cab what makes the wrapping process comfortable to control. 1-INNOVATIVE Front loading when the wrapper is positioned next to the side of the bale saves time and fuel. 2-ECONOMIC Low manufacturing costs. 3-FUNCTIONAL Self loading system while operating the tractor without stopping. 4-COMFORTABLE Easy to use. Due to the hydraulic splitter we can control loading and unloading without leaving the tractor cab. 5-ECONOMIC Low operating costs.Unloading wrapped bales without leaving the tractor cab. Weight 1650kg Lenght in transport/working position 5890/6100mm Width in transport/working position 2220/3370mm Maximum height 2570mm Width max 1250mm Bale diameter from 1200 to 1500mm Permissiable bale weight 1000kg Width of the wrapping foil 500 or 750mm Power requirement 35,3/48HP/kW Required tractor hydraullic outputs (no.) 2 ( 1 pair)pcs. Suspension single axle, rigid– Tyres 340/55-16– Maximum 30km/h
