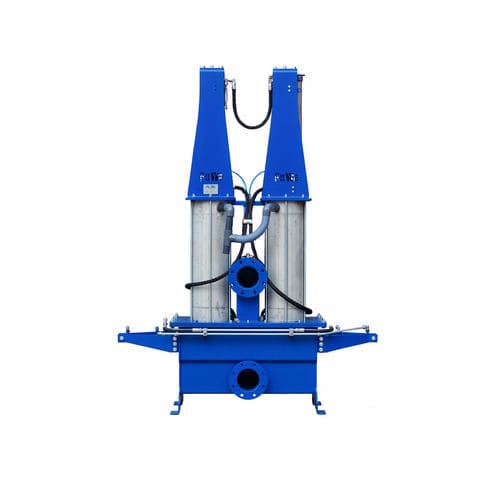

Piston pump W series

Low wear Insensitive to foreign bodies High suction power (0.6-0.8 bar) High dry matter content is not a problem (25%) Low power consumption Low maintenance costs Integrated pressure monitoring Integrated stone trap Can be used as a suction bar Pass-through safe The W300 is characterized by its relatively small design and is ideally suited for food waste systems. Even a lot of glass and other foreign bodies do not damage the pump as they remain in the integrated stone trap. The power consumption under full load is 7.5 kW (at 25 m³/hour and 4 bar pressure). Optional equipment: - Maintenance flaps (for easy emptying of the stone trap) - Reverse pumping (so the pump can pump in both directions) - Own soft starter or use existing frequency converter - The hydraulic unit that operates the W300 can be equipped with an IE3, IE4 or IE5 motor. - The pump can be adapted to your requirements on request Dimensions: - Width: 2.00m - Depth: 0.50m - Height: 2.60m - Weight: 680Kg Simple and robust The pumps are made of robust steel with a thickness of 10 to 20 mm, and can be made entirely of stainless steel on request. Thanks to optional maintenance flaps, pump maintenance is simple and straightforward.
