Wheat dryer PWL GD

seedfor soyfor rapeseed

Product description

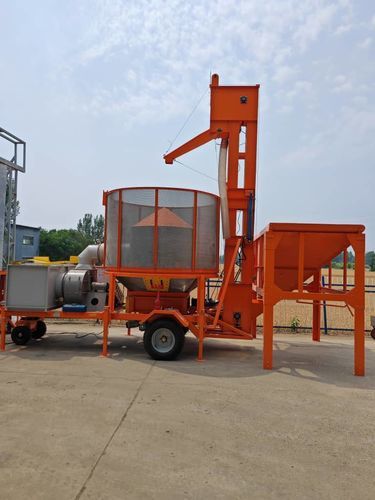

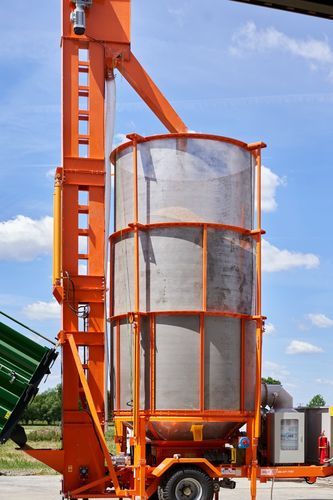

The PWL GD mobile grain dryers are designed to dry wheat, corn, soybean, sunflower, various cereals and other high‑moisture crops. With 1 mm sieves they can also dry small seeds (e.g. rapeseed). They are suitable for farms, grain collection points and seed production facilities. The dryer uses hot air in a circulating drying process to heat and dry grain evenly. It can be fuelled by liquefied petroleum gas (LPG) or fuel oil. The unit is equipped with an automatic online temperature and humidity measurement system to increase automation and preserve grain quality after drying.

Available models

• GD 7 – grain capacity 5 tonnes
• GD 18 – grain capacity 12 tonnes
• GD 35 – grain capacity 25 tonnes

Key features

• Grain transport: belt conveyor and bucket elevator with plastic buckets to reduce grain damage.
• Grain feeder design: four‑axis picking table ensures uniform grain circulation in the drying tank.
• Folding bucket elevator: hydraulic, allowing easy handling, transport and rapid start‑up.
• Tank lifting function: manual winch raises the silo; minimum tank height 3.1 m to improve mobility during transport.
• Main frame material: proprietary patented W‑type construction for increased stability and service life.
• Silo mesh: stainless steel 304, thickness 1.15 mm, holes Ø 2 mm (optional 1 mm); high oxidation and corrosion resistance.
• Powder coating: spray finish for long‑term outdoor storage without discoloration or paint flaking.
• XXL tyres: size 400/60‑15.5 for improved traction and contact area, enhancing stability in transit.
• Cleaner / winnower (optional): central collection and processing of impurities and dust to reduce environmental contamination.
• Adjustable supports: 6 units, each 3 tonnes capacity; manual height adjustment enables operation on uneven ground.

Technical specifications

• Drying type: circulating hot air
• Fuel: liquefied petroleum gas (LPG) or fuel oil
• Measurement system: automatic online temperature and humidity measurement
• Transport system: belt conveyor and bucket elevator with plastic buckets
• Elevator: folding hydraulic
• Minimum tank height: 3.1 m
• Frame material: proprietary patented W‑type construction
• Silo mesh: stainless steel 304, thickness 1.15 mm, holes Ø 2 mm (optional 1 mm)
• Coating: powder coating (spray applied)
• Tyres: 400/60‑15.5
• Adjustable supports: 6 × 3 tonnes
• Intended crops: wheat, corn, soybean, sunflower, various cereals; with sieve change also small seeds (e.g. rapeseed)
