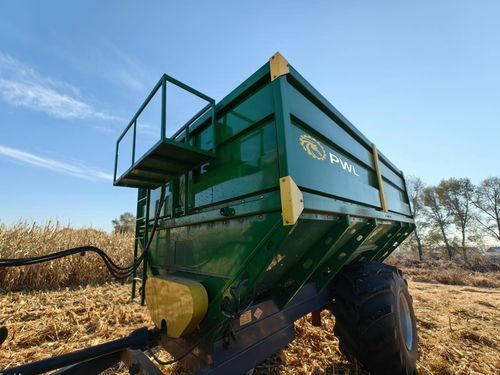

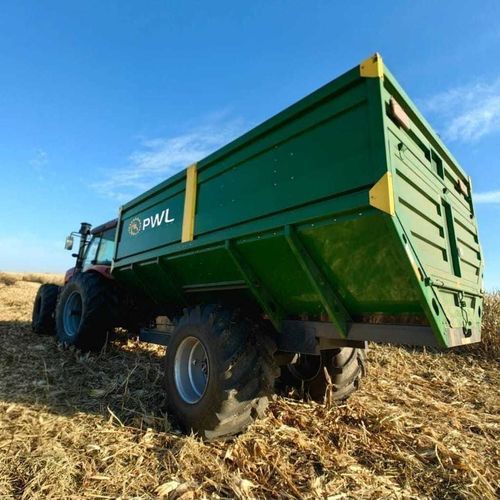

Towed grain Cart PWL WAGON

Description
Unloading trailers with 18 and 22 m³ capacity and rear discharge — an efficient unloading solution for harvest operations. Designed for fast, precise unloading and compatible with standard agricultural tractors.

Technical data

• Load box volume: 18 / 22 m³
• Overall dimensions (L×W×H): 6500 × 2960 × 3900 mm
• Unladen weight: 4200 kg
• Tyres: 800/45 R26.5 or 810/45 R26.5
• Minimum tractor power required: 95 HP
• PTO speed: 540–760 rpm
• Loading height: 2960 mm
• Maximum discharge height: 5400 mm
• Auger diameter: 377 mm
• Discharge time: 3–7 minutes

Optional equipment

• Hydraulically opening tarpaulin with frame
• Hydraulic dosing gates
• Braking system

Additional information
Designed for fast unloading and precise operation, suitable for intensive use during the harvest season.

Characteristics / Technical specifications

• Model/series: PWL WAGON
• Load box volume: 18 m³ or 22 m³
• Overall dimensions (L×W×H): 6500 × 2960 × 3900 mm
• Unladen weight: 4200 kg
• Tyres: 800/45 R26.5 or 810/45 R26.5
• Required tractor power: min. 95 HP
• PTO speed: 540–760 rpm
• Loading height: 2960 mm
• Maximum discharge height: 5400 mm
• Auger diameter: 377 mm
• Discharge time: 3–7 minutes
• Available options: hydraulic tarpaulin, hydraulic dosing gates, braking system
