Automated steering system NanoSteer 210

satelliteBluetoothGNSS

PWL NanoSteer 210 is a next-generation agricultural guidance and auto-steering solution designed to bring precision farming technology within reach of modern farms. Combining advanced RTK, PPP, and L-Band correction technologies, the system delivers highly accurate vehicle guidance, reduces operating costs, and maximizes field efficiency in all farming conditions.

Precision You Can Trust
Powered by a multi-constellation GNSS receiver supporting GPS, NanoSteer 210 provides exceptional positioning performance with RTK accuracy down to 2.5 cm. This level of precision minimizes overlaps and skips, ensuring optimal use of seeds, fertilizers, crop protection products, and fuel.

RTK + PPP Technology for Maximum Reliability
Unlike conventional guidance systems that depend solely on cellular connectivity, NanoSteer 210 integrates both RTK and PPP correction services, including support for L-Band satellite corrections. This enables highly accurate positioning even in remote areas where mobile internet coverage is limited or unavailable.

Fully Automated Steering Control
The system features a powerful electric steering motor delivering up to 12 Nm of torque, providing smooth and accurate vehicle control across a wide range of agricultural machinery.

NanoSteer 210 automatically keeps the machine on the selected guidance line, significantly reducing operator fatigue while improving work quality and field efficiency. Operators can focus on implementing agricultural tasks while the system maintains precise steering accuracy.

Intelligent Terrain Compensation
A built-in 6-axis IMU (Inertial Measurement Unit) equipped with gyroscopes and accelerometers continuously compensates for vehicle roll, pitch, and terrain irregularities.
This advanced compensation technology maintains accurate positioning and guidance performance on slopes, uneven terrain, and challenging field conditions, ensuring consistent results across the entire working area.

Advanced Guidance Functions
NanoSteer 210 offers a comprehensive set of guidance modes designed to support every type of field operation:

• Straight AB guidance lines
• Curved guidance lines for irregular field shapes
• Circular guidance patterns for center-pivot irrigation systems
• Automatic U-Turn functionality
• Vehicle and steering calibration tools
• Real-time field navigation and tracking

High-Performance 10.1-Inch Display
The system includes a rugged 10.1-inch industrial-grade touchscreen terminal running on Android 8.1. Powered by an octa-core 2 GHz processor and high-speed memory, the display provides smooth navigation, fast response times, and reliable operation in demanding agricultural environments.

With a brightness rating of 600 nits, the screen remains clearly visible even in direct sunlight, ensuring comfortable operation throughout the day.

Comprehensive Connectivity
NanoSteer 210 is equipped with multiple communication interfaces to support modern farming operations:

• Built-in GSM modem with SIM card support
• Wi-Fi 2.4 GHz and 5 GHz
• Bluetooth 5.0
• USB connectivity

Built for Harsh Agricultural Environments
Designed specifically for field operations, NanoSteer 210 combines industrial durability with long-term reliability. Both the GNSS receiver and display terminal feature IP67-rated protection, providing resistance against dust, water, vibration, and extreme environmental conditions.

Key Benefits for Farmers:

• Up to 2.5 cm RTK guidance accuracy
• Reduced overlaps and missed areas
• Lower fuel consumption
• Reduced fertilizer and chemical usage
• Increased operational efficiency
• Less operator fatigue
• Improved field productivity
• Reliable performance day and night
• Fast return on investment through measurable cost savings

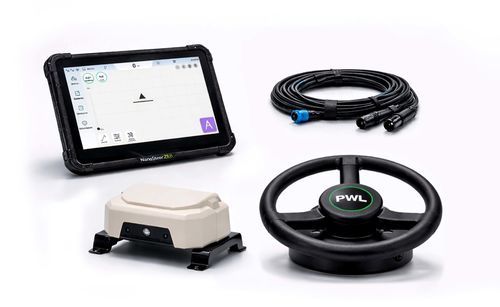

The NanoSteer 210 package includes:

• 10.1-inch touchscreen display
• High-precision GNSS receiver
• Auto-steering motor and mounting kit
• Complete wiring harness
• Installation and configuration documentation
