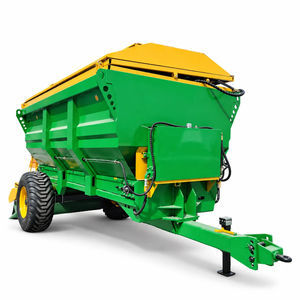

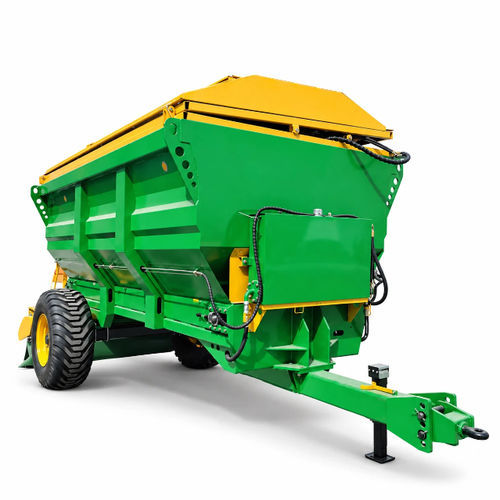

Towed fertilizer spreader HFS12-2500

drylime

Product Overview
The HFS12-2500 is a 12 m³ rear-auger powder spreader engineered for controlled spreading of lime, cement and similar powdered materials in road construction, roadbed treatment and ground stabilization projects. The machine combines a box-type hopper with a mechanically driven chain-slat feeding system, screw distribution and an oscillating housing spreading mechanism. Hydraulic controls regulate feed and discharge for consistent output; an enclosed spreading cover reduces dust emissions.

Key Features and Advantages

• 12 m³ powder hopper for extended operation between reloads
• Mechanically driven dual chain-slat feeding for stable material conveyance
• Screw distribution plus oscillating housing ensures uniform material dispersion across the working width
• Adjustable output: variable chain-slat feed speed and hydraulic discharge gate for precise dosing
• Enclosed spreading cover and dust-control measures to limit airborne dust
• Automatic spreading control to maintain target spread rate per m² regardless of vehicle speed
• Adjustable conveying screw and distribution roller to optimize consistency for varied powder types

Technical Specifications
Model: HFS12-2500
Product type: Lime and cement powder spreader
Structure type: Box body
Operating method: Spreading
Overall dimensions: 5785×2900×2400 mm
Hopper internal dimensions: 4600×(2500/1500)×1480 mm
Powder hopper volume: 12 m³
Maximum load capacity: 12 000 kg
Vehicle drive power requirement: ≥ 140 kW
Spreading device type: Screw distribution with oscillating housing spreading
Powder feeding system: Mechanically driven chain-slat feeding
Spreading width: 2.5 m
Self-contained power: 120 HP
Operating drive: Hydraulic
System voltage: 24 V
Gear pump quantity: 1
Motor quantity: 3

Applications

• Road construction and base preparation
• Roadbed treatment and stabilization
• Ground stabilization and soil improvement
• Large-scale powder material spreading operations

Applicable Materials

• Powdered lime
• Cement

Operation Instructions and Safety Notes

• Pre-operation check: inspect hopper, chain-slat feed, hydraulic system, spreading mechanism, discharge gate and spreading cover; verify moving parts are free and functioning
• Material loading: load dry, free-flowing powder; avoid large foreign objects or heavily caked material that can block conveyors, screws or gates
• Spreading adjustment: set chain-slat feed speed and hydraulic gate opening according to required application rate; confirm spreading mechanism operates correctly before continuous runs
• Operational safety: keep personnel clear of discharge and spread zone during operation; stop drive systems before inspection, clearing or maintenance
• Dust precautions: keep spreading cover positioned and follow site dust-control requirements when handling dusty materials

Maintenance Recommendations

• Clean residual powder from hopper, chain-slat conveyor, screw distributor and spreading components after use
• Regularly check chain-slat feeding system for wear, correct tension and smooth movement
• Inspect hydraulic hoses, valves, gear pump and motors for leaks or abnormal operation
• Keep hydraulic discharge gate clean and verify smooth opening/closing
• Monitor screw distributor and distribution roller for wear or buildup
• Clean spreading cover and adjacent components after operation
• Store equipment in a dry, ventilated area when not in service

Specifications

• Model: HFS12-2500
• Powder hopper volume: 12 m³
• Overall dimensions: 5785×2900×2400 mm
• Hopper internal dimensions: 4600×(2500/1500)×1480 mm
• Maximum load capacity: 12 000 kg
• Spreading width: 2.5 m
• Vehicle drive power requirement: ≥ 140 kW
• Self-contained power: 120 HP
• Operating drive: Hydraulic
• System voltage: 24 V
• Gear pump quantity: 1
• Motor quantity: 3
