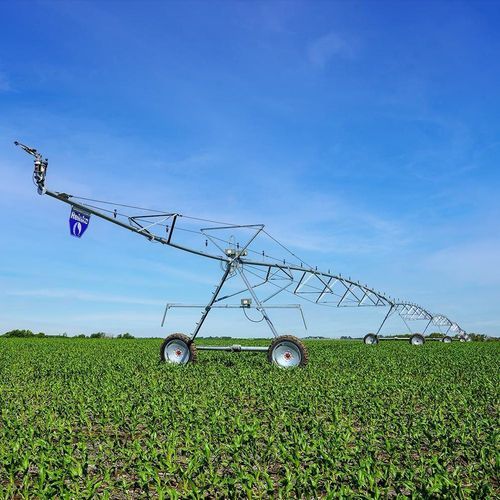

Center irrigation pivot Electrogator® 3

wheel-mounted

Overview
The E3™ (Electrogator® 3) center pivot irrigation system is engineered for stable, reliable operation and adaptable installation. Its open-frame design allows retrofit to existing irrigation systems and uses a C-channel tower leg as the foundation. Patented maintenance-free bearings provide holding strength and extended service life without greasing.

Key Features

• Open-frame design for retrofit flexibility and a C-channel tower foundation.
• Maintenance-free bearings to reduce routine upkeep.
• Uniform coupler spacing for even water coverage and improved tracking (available in 30" or 60" intervals).
• V-ring seals that protect seals from UV exposure and help preserve flow.
• ReinLock™ Trussing System with anti-racking 5-point hub and single-bolt retention to maintain span crown and stress transfer.
• Multiple drivetrain options for varied soil and terrain: Three-Wheel Flex, Three-Wheel Ridged, Agri-TRACS™.
• Remote monitoring and control capability compatible with Reinke remote systems.

Product Information — Pivot Center
The E3’s open-frame layout enables straightforward retrofit to many irrigation configurations. The C-channel tower leg provides a durable foundation. Patented maintenance-free bearings withstand high rotational forces, delivering strong holding capacity and extended performance without periodic greasing.

Product Information — Spans
Uniform coupler spacing across the system yields consistent coverage and improved tracking regardless of span combinations. Span outlet spacing options: 30" or 60". Industry-leading V-ring seals protect sealing surfaces from UV and help maintain design flow. The ReinLock™ Trussing System uses an anti-racking 5-point hub with a single bolt to preserve span crown and transfer stress effectively.

Product Information — End of System
End booms use an inverted truss design to provide adaptable coverage; bolted rod ends allow customized clearance to match field requirements. The patented Electronic Swing Arm Corner (ESAC®) enables corner irrigation with available lengths (for example, 290' and 330') to optimize corner coverage and reduce over- or under-watering.

Product Information — Towers & Structural Elements
The system includes tower stiffeners (3" hot-dipped steel tube) compatible end-to-end, single-leg tower options to minimize crop damage, enhanced tower top hook/receiver joints compatible with ReinLock truss rods, and the Blue Reinke 10/16 Wheel Gearbox with extended warranty coverage. Center drive gear motors use high-strength steel, fully enclosed electrical connections, and helical gears for reliable operation over rough terrain.

What to Expect (Deployment & Maintenance)

• System design and configuration support available through certified local dealers to tailor coverage to field shape and maximize irrigated area.
• Factory-built systems are delivered and installed by dealers.
• Maintenance is simplified by maintenance-free bearings and protected V-ring seals; routine checks include winterization, inspection of mechanical components for wear, and tire inflation/alignment.

Technical specifications

• Pivot Points: 6", 8" Maintenance-Free Bearing, 10"
• Max System Length: 2,900'
• Pipe Diameters: 6", 6 5/8"
• Pipe Materials: High-Strength Steel, CN+
• Pipe Coatings: ReinCoat®, RedCoat™
• Span Lengths (varies by pipe): 80', 100', 120', 140', 160', 175', 180', 200', 220'
• Span Connection: Hook & Receiver
• Span Outlet Spacing: 30", 60"
• Span Percent Slope: Up to 23% (varies by span length and performance kits)
• Boom Lengths: 10' to 110' in 10' increments
• Wheel Gears: Moderate duty, 740 Series; Reinke 10/16 WheelGear
• Tires: 11" x 22.5", 11.2" x 24", 320/85R24, 14.9" x 24", 16.9" x 24", 11.2" x 38", 320/85R38, 13.6" x 38", 380/80R38
• Drive Train Options: Three-Wheel Flex, Three-Wheel Ridged, Agri-TRACS™
• Tower Heights: Low-Profile, Standard, Sugargator®, Supergator®
• Truss System: ReinLock™ Trussing System
• Truss Rods: 5/8", 3/4", 13/16"
• Towing Options: Four-Wheel Pivot Mover, Skid Tow, Two-Wheel Kwik Tow, Reverse Tow, Engine Drive (note: maximum machine length limitations apply for certain towing packages)
• ESAC™ Swing Arm Corner: Available
• Wrap Span: Available
• Drop Span: Available
• Notable Longevity Items: V-Ring Seal (25-year warranty), Span Joint Water Hose (Boots) (10-year warranty), structural corrosion-related failures covered up to 20 years for listed materials; various drivetrain and component warranties apply (see manufacturer's specs for details).
