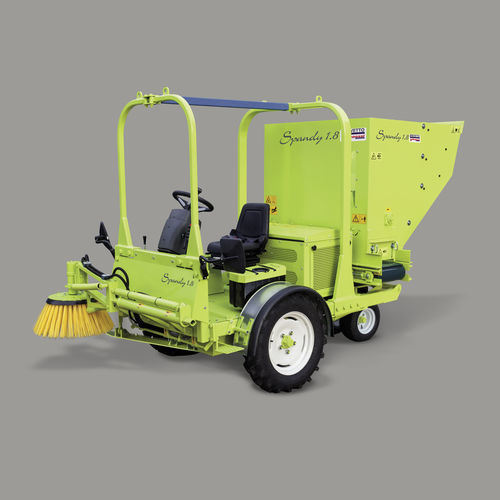

Self-propelled straw spreader SPANDY 1.8 8

electricfor sawdustbedding

Self-propelled multipurpose machine for cleaning the ends stalls and renews bedding at the same time. It consists of a chassis with four wheels, a front rotary brush and a self-loading tank. All the controls are accessible from the centrally positioned driving seat. Thanks to a hydraulic distributor, the front brush may be lifted and lowered, the tank may be raised and lowered, and the motors that release the tank load and cause the front brush to rotate may be turned on and off. It is possible to load various kinds of bedding into the tank according to needs (sawdust, chopped straw, sand, etc.). Dust is minimized during bedding release thanks to an effective roller-belt system. Its hydrostatic transmission allow to drive the Spandy with its control pedal. It has brakes on the frontal wheels, 6.50-16 front drive wheels and 16×6.50-8 rear steerable wheels. Steering is fast and accurate thanks to the load sensing hydraulic system. It turns completely around in a radius of 1.80 m. Width: 1.62 m; height: 1.90 m; length: 3.60 m; carrying capacity:1.80 m3. Lombardini FOCS 1003 LDW three-cylinder diesel engine, 1.028 cm3, 19.00 kW (25.50 HP) with electric start.Weight: 1.300 kg. TECHNICAL SPECIFICATIONS Width:1.62 m Height:1.90 m Length:3.60 m Capacity:1.80 m3 Engine:Lombardini FOCS 1003 LDW three-cylinder diesel engine, 1.028 cm3, 19.00 kW (25.50 HP) with electric start. Weight:1.300 kg ACCESSORIES .Reels or lateral rotating brush speed regulation valve .Hydraulic engine with straw knifes .Frontal blade to clean the corners: hydraulically acted (without) .Frontal brush (without)
