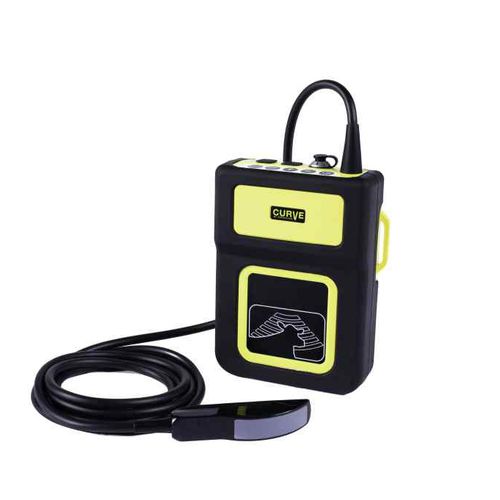

Portable veterinary ultrasound system BoviScan Curve
for cattleconvex arrayfor reproductive imaging

portable veterinary ultrasound system
portable veterinary ultrasound system
portable veterinary ultrasound system
portable veterinary ultrasound system
portable veterinary ultrasound system
portable veterinary ultrasound system
portable veterinary ultrasound system
Add to favorites
Compare this product


Characteristics

Ergonomics
portable
Type of animal
for cattle
Scanning method
convex array
Applications
for reproductive imaging
Other characteristics
battery powered, rectal

Description

The BoviScan Curve is a durable, light weight, portable, convex probe cattle ultrasound. It is designed to be paired with the ReproArm or for rapid pregnancy diagnosis and the alleviation of shoulder and arm strain. Features ▪ 4.0 MHz 60 mm convex rectal probe (2.0 to 5.0 MHz) ▪ 80 element probe ▪ Built-in 8 hour lithium ion battery ▪ Charge from 120/240 VAC or 12 DC (Car Charger) ▪ Battery indicator on display ▪ 4.4 lb (2 kg) weight including battery ▪ Can be used while still charging ▪ Splash proof ▪ Comfortable waist strap ▪ Protective gel sleeve for added durability ▪ Compatible with multiple viewing devices ▪ Compatible with the ReproArms ▪ 4 preset examination settings ▪ 6 to 22 cm rapid zoom with indicator ▪ Multiple grid settings for measuring and aging fetus ▪ VGA 5 VDC video out port with LEMO connector ▪ NTSC/PAL video out port with RCA connector Specifications ▪ Lithium ion 11.1 VDC 6800mAh battery ▪ Plug-in 120/240 VAC or 12 VDC Car Charger ▪ 8 hour battery life ▪ 6 hour battery charge time ▪ 2.0 to 5.0 MHz probe frequency range ▪ 80 probe elements ▪ -10C to 40C (5 F to 104F) temperature range ▪ 20cm x 15cm x 5.5 cm / 7.5" x 6" x 2" ▪ 24 months warranty on ultrasound unit ▪ 24 months warranty on probe ▪ 6 months warranty on battery

VIDEO
