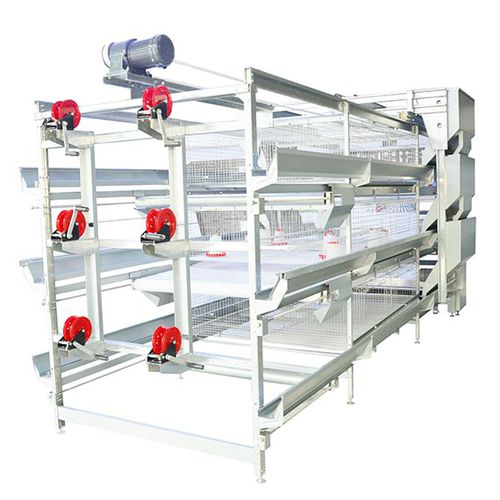

3-stage broiler rearing cage

stainless steel framewith manure removal systemgalvanized

Easy operation, durable material, low mortality and high uniformity of the birds. Compared with floor system, the uniformity of the birds in cage is better. The full set of equipment using hot-dip galvanized material, corrosion-resistant, which ensures the service life of 15-20 years. Intensive management and automated control. Achieve automatic feeding,drinking,manure cleaning, and environment control,can help to improve working efficiency and save labor cost. High-density raising,saves land and investment. Suitable for closed chicken house. Automatic control of ventilation and temperature can meet the requirement of the birds. Drawing of Manual Bird-harvesting H Type Broiler Raising Cage In a house of 80m*10m*3.2m,3 tiers cages are installed,35 units cage per line,if the adult broiler weight is 2.5kg,the total bird quantity is 20160 birds.If the adult broiler weight is 1.8kg,the total bird quantity is 27720 birds. There are 6 cells in each unit; amount of birds per unit: 192; Each cell has 2 rooms: each room has 16 birds; colony area: 500 C㎡. Cage height: 450mm Each cell area:8000C㎡.
