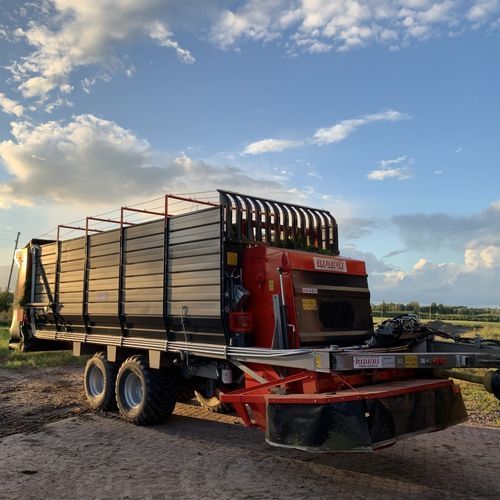

Loader wagon RS100
mounted2-axleforage

Add to favorites

Compare this product

Go to the RIBERI website for more information

Characteristics

Construction: self-loading
Type: mounted
Number of axles: 2-axle
Application: forage
Payload: 0 t...10 t
Brake system: with pneumatic braking
Other characteristic: harvesting, self-unloading, with mower, moving floor, PTO, side-unloading, swing-arm
Empty weight: 4,800 kg
(10,582.2 lb)
Recommended power: 120 ch
(120 hp)
Load volume: 28 m³, 38 m³
(988.811 ft³, 1,341.957 ft³)
Loading case lenght: 5,700 mm
(224.4 in)
Loading case width: 2,200 mm
(86.6 in)
Loading case hight: 1,650 mm
(65 in)

Description

This self-loading cutter wagon, the largest of the series, can be supplied in three different versions. With a simple hydraulic tailgate for rear unloading. With a simple hydraulic tailgate for rear unloading and a retractable cross conveyor for side unloading. With dosing rollers and bilateral cross belt (twoside-contemporary-distribution as an option) and an independent hydraulic tailgate for rear unloading if necessary. All fitted with an independent segmented boogie axle system. Two-drum cutter bar with helical bevel gear transmission, which transmits more power, reducing consumption and noise. High resistance steel discs. Lightening system (on request), which drastically reduces mechanical stress on the mower / elevator unit, increases the life of the machine and provides a dynamic response to the unevenness of the ground. It is fitted on an independent frame that allows free oscillation. Technical Data RS/100/RB Total lenght [mt]9,80 Total width [mt]2,35 Total height [mt]3,25 Loading capacity [mc]38
