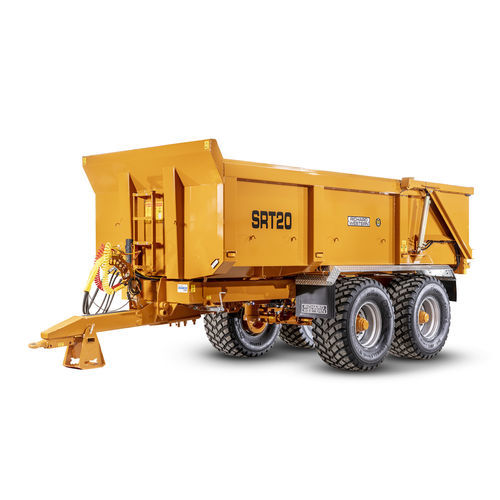

Tipping trailer SRT20

tandem axleagricultural20 ton

These heavy-duty trailers with reinforced 6mm sides and 8mm floor are ideal for moving stone and rubble. The strong body construction with extra floor bracing and heavy-duty undercarriage, prevents damage and protects against debris and foreign objects. Available in 20 tonne model, all stone and rubble trailers are designed for use with high speed tractors and are fitted with commercial axles on 420mm x 180mm brakes. FEATURES .Strong and durable. The trailer body is constructed using integrated “U” channel floor bearers, a pressed and fully welded centre floor seam with floor structure support running from front to rear to optimise the strength to weight ratio. .Faster tipping. Fitted with a single six stage tipping ram ensures greater stability when tipping on uneven ground. .Highly rated towing qualities. Our commercial mono leaf spring suspension system is designed specifically for agriculture to reduce body roll and give you greater stability. OPTIONS .10mm floor and 8mm sides .Hardox 400 4mm floor and 3mm sides .400m Extension sides .900mm trailer side height in lieu of the 1150mm height .Headboard mounted hydraulic Roll over sheeting system .Dual brakes - Hydraulic and air brakes with load sensing valve .ABS on air brakes .Auto slack adjusters .LED work lights complete with pressure switch from tip circuit .Load cell weighing equipment c/w trailer mounted display, 4 load cells .8 bolt flange bolt-on swivel eye or K80 spoon 8 bolt flange bolt-on 50mm eye .Weld on swivel eye .Plastic toolbox .Rear towing out points .Range of flotation tyres to suit your needs
