Bean mill G8

cornbarleyrice

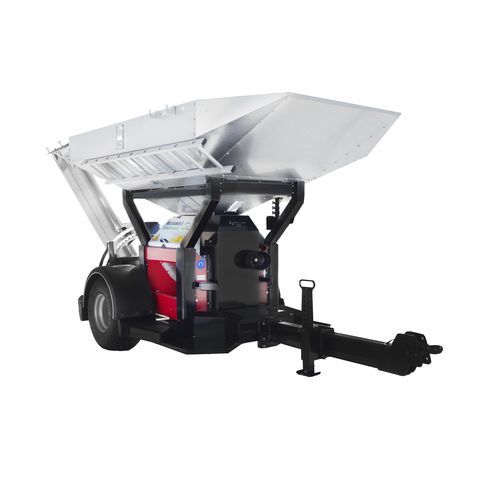

The Rivakka Greenmaker G8 is a tractor-driven roller mill for fresh or dry grain. The mill's serrated-edged, hardened rollers effciently pull grain inside and carefully crush even the smalled grain. The discharge funnel is made of stainless steel and is prepared for an acidifier. Easy to operate and serice points are easily check daily. The spacing of the rollers can be adjusted quickly with a stepless adjusting nut and locked in place with a lever. This keeps the roller gap always same unlike spirng loaded or hydraulic jack versions. If something too big for the rollers passes through, the rollers are protected from damage by a quickly replaceable shear bolt. The stainless steel discharge funnel diameter ø220mm ensures efficient unloading to both sides at a steplessly adjustable height. The discharge funnel folds in half, making the mill easy to transport. Utilize the advantages of wet preservation at times of high oil prices. Max crimping dry* 40 000 kg/hour Max crimping wet* 25 000 kg/hour Power requirement 160 hp Length of rollers 700mm Diameter of rollers ø350mm Power to rollers Gear drive Hopper volume 3 200 litre ( 3.2m³) Length 3 000 mm Width 2 200 mm Height in transit 2 600 mm Unloading pipe length 4 000 mm Unloading pipe diameter ø220 mm Weight 2 300 kg *Maize
